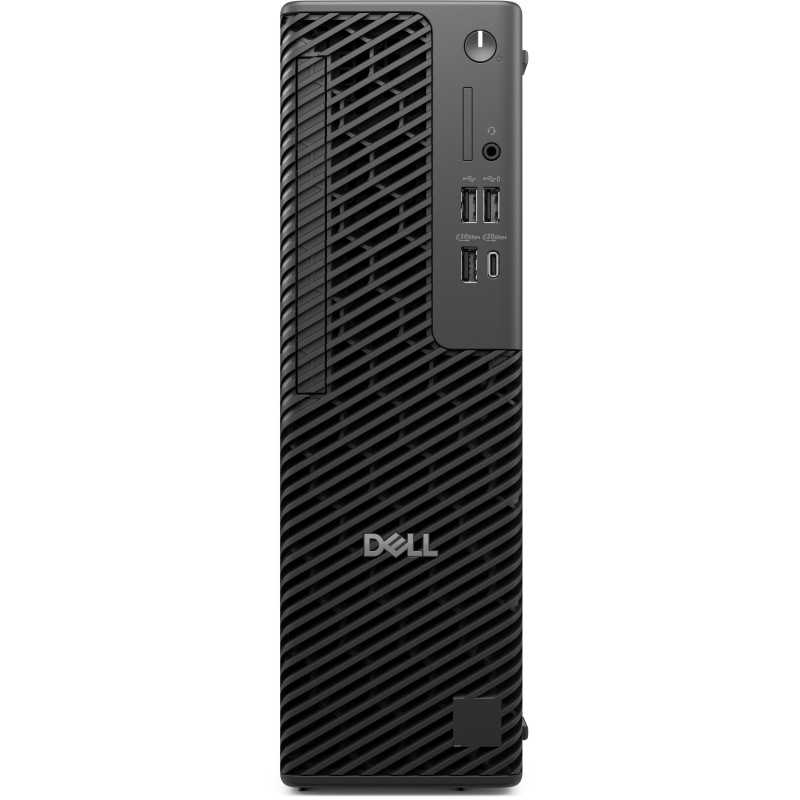

DELL Pro Max FCS1250 Intel Core Ultra 5 245 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Slim PC PC Black

DELL Pro Max FCS1250. Processor family: Intel Core Ultra 5, Processor model: 245. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 360 W. Chassis type: Slim PC. Product type: PC. Weight: 13.5 lbs (6.11 kg). Product color: Black

Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	245
Processor generation	Intel Core Ultra (Series 2)
Processor cores	14
Processor threads	14
Processor boost frequency	5.1 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5.1 GHz
Efficient-core Max Turbo Frequency	4.5 GHz
Performance-core base frequency	3.5 GHz
Efficient-core base frequency	3 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	65 W
Maximum turbo power	121 W
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	29 TOPs
NPU performance up to	13 TOPs
GPU performance up to	8 TOPs
Internal memory	16 GB
Maximum internal memory	128 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	4x SO-DIMM
Non-ECC	Yes
Memory data transfer rate	5600 MT/s
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD memory type	TLC
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Self-Encrypting Drive (SED)	Yes
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® Graphics
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
Graphics card Mini DisplayPort ports quantity	4
Product type	PC
Motherboard chipset	Intel W880
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Ethernet LAN	Yes
Wi-Fi	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2x2 Type-C ports quantity	1
DisplayPorts quantity	3
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
DC-in jack	Yes
Number of SATA III connectors	2
PCI Express x1 (Gen 3.x) slots	1
PCI Express x4 (Gen 3.x) slots	1
PCI Express x16 (Gen 4.x) slots	1
Power supply	360 W
Power supply input voltage	90 - 264 V
Power supply input frequency	47/63 Hz
80 PLUS certification	80 PLUS Platinum
Chassis type	Slim PC
Product color	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Activate Your Microsoft 365 For A 30 Day Trial
Display included	No
Audio chip	Realtek ALC3204
Audio system	High Definition Audio
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-598.4 - 120000" (-15.2 - 3048 m)
Non-operating altitude	-598.4 - 420000" (-15.2 - 10668 m)
Width	3.74" (95 mm)
Depth	11.5" (293 mm)
Height	11.9" (303.5 mm)
Weight	13.5 lbs (6.11 kg)
Cables included	AC
Doesn't contain	PVC/BFR
Total carbon footprint (kg of CO2e)	202
Carbon emissions, manufacturing (kg of CO2e)	95.748
Carbon emissions, logistics (kg of CO2e)	10.1
Carbon emissions, energy usage (kg of CO2e)	92.718
Carbon emissions, end-of-life (kg of CO2e)	3.64
PAIA version	GaBi version 1, 2024
