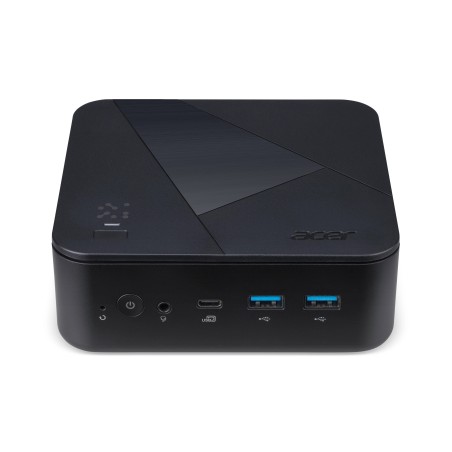

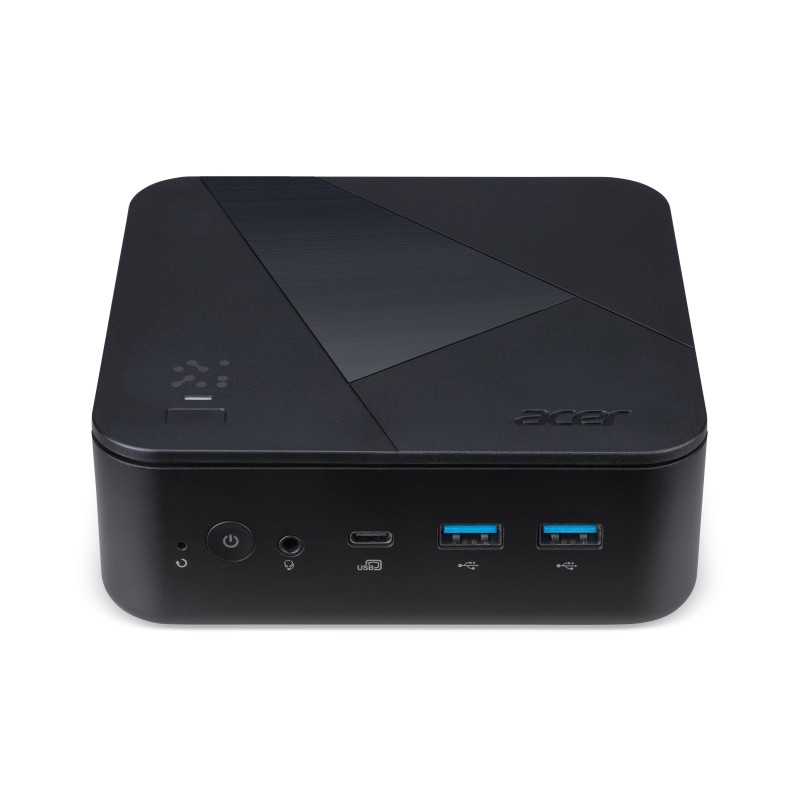

Acer Revo Box RB102-LNL Copilot+ PC Intel Core Ultra 5 226V 16 GB LPDDR5x-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

Acer Revo Box RB102-LNL. Processor family: Intel Core Ultra 5, Processor model: 226V. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Wi-Fi. Operating system installed: Windows 11 Pro, Operating system architecture: 64-bit. Power supply: 90 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 17.6 oz (500 g). Product color: Black

Processor family	Intel Core Ultra 5
Processor manufacturer	Intel
Processor model	226V
Processor generation	Intel Core Ultra (Series 2)
Processor cores	8
Processor threads	8
Processor boost frequency	4.5 GHz
Performance cores	4
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.1 GHz
Low Power Efficient-core Base Frequency	2100 MHz
Processor cache	8 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	17 W
Maximum turbo power	37 W
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to	97 TOPs
NPU performance up to	40 TOPs
GPU performance up to	53 TOPs
Internal memory	16 GB
Maximum internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory layout (slots x size)	1 x 16 GB
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc Graphics 130V
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
Product type	Mini PC
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
USB4 Gen 3×2 ports quantity	1
DisplayPorts quantity	1
DisplayPort version	1.4a
HDMI version	2.1
Ethernet LAN (RJ-45) ports	2
Combo headphone/mic port	Yes
DC-in jack	Yes
Power supply	90 W
Chassis type	Mini PC
Product color	Black
Volume	0.9 L
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Display included	No
Audio system	High Definition Audio
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Width	5.16" (131 mm)
Depth	5.16" (131 mm)
Height	1.69" (43 mm)
Weight	17.6 oz (500 g)
