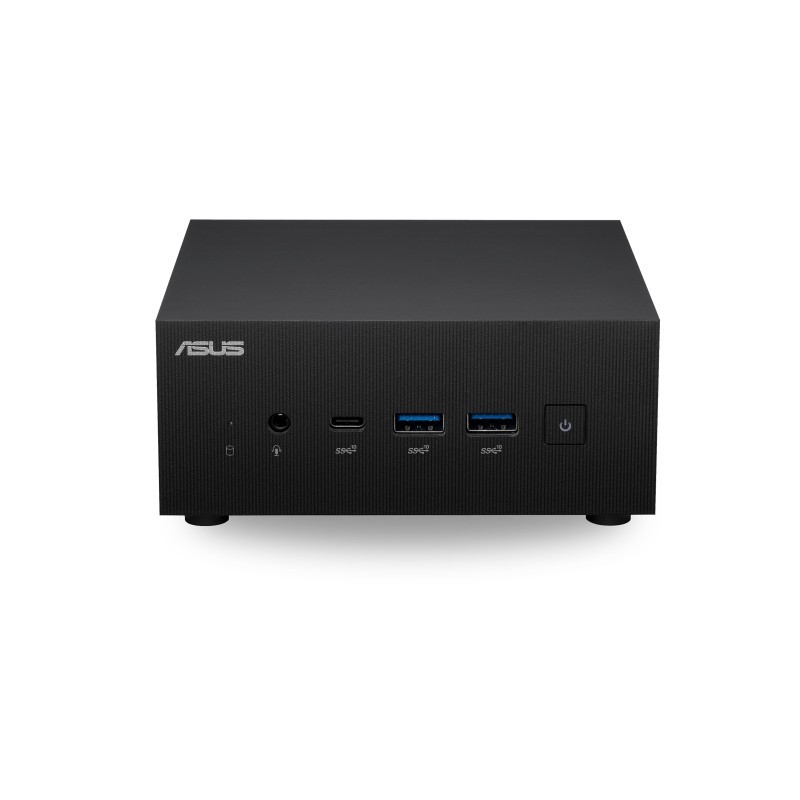

ASUS ExpertCenter PN64-S7018MDE1 Intel® Core™ i7 i7-13700H 16 GB DDR5-SDRAM 512 GB SSD Mini PC Black

ASUS ExpertCenter PN64-S7018MDE1. Processor family: Intel® Core™ i7, Processor model: i7-13700H. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 4800 MHz. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics. Wi-Fi. Chassis type: Mini PC. Product type: Mini PC. Weight: 24.7 oz (700 g). Product color: Black

Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Processor model	i7-13700H
Processor generation	13th gen Intel® Core™ i7
Processor cores	14
Processor boost frequency	5 GHz
Processor cache	24 MB
Configurable TDP-down	35 W
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory slots	2x SO-DIMM
Memory clock speed	4800 MHz
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Iris Xe Graphics
On-board GPU manufacturer	Intel
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
LAN controller	Intel I225-V
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.2
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Thunderbolt 3 ports quantity	0
HDMI ports quantity	2
HDMI version	2.0
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Headphone outputs	1
Line-out	Yes
DC-in jack	Yes
Chassis type	Mini PC
Product color	Black
Color name	ECO Black
Volume	0.6 L
Placement supported	Horizontal/Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Product type	Mini PC
Audio chip	Realtek ALC3251-CG
Audio system	High Definition Audio
Built-in speaker(s)	No
Operating system installed	No
CPU configuration (max)	1
Certification	BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Width	4.72" (120 mm)
Depth	5.12" (130 mm)
Height	2.28" (58 mm)
Weight	24.7 oz (700 g)
Package width	11.3" (286 mm)
Package depth	6.89" (175 mm)
Package height	2.68" (68 mm)
Package weight	4.06 lbs (1.84 kg)
Display included	No
