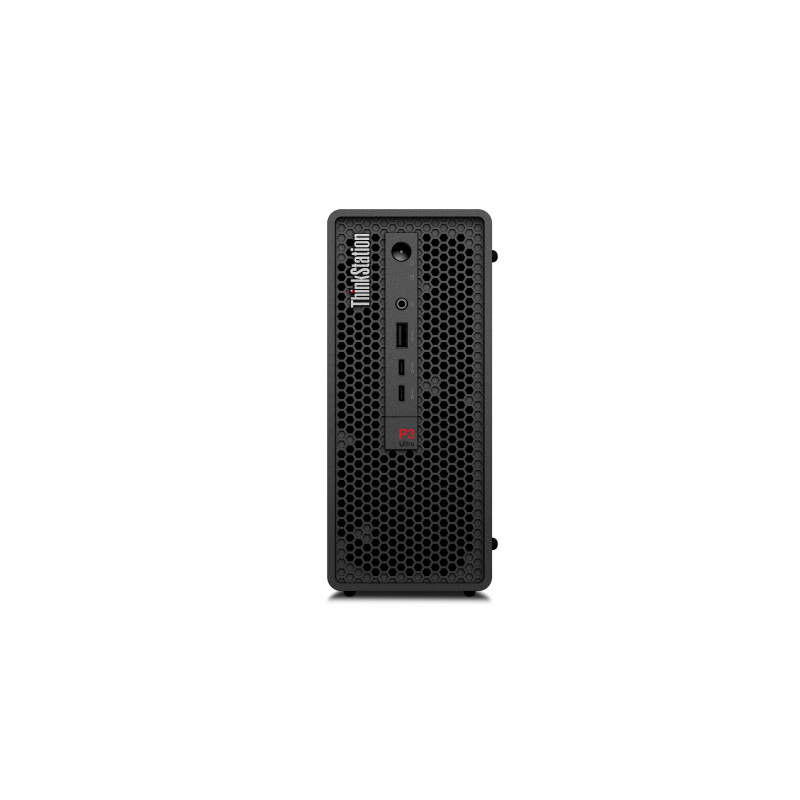

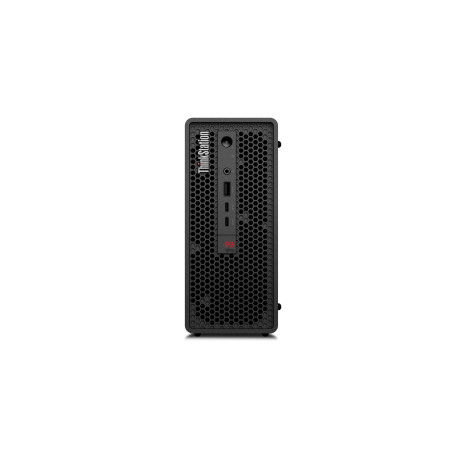

Lenovo ThinkStation P3 Ultra SFF Gen 2, Intel Core Ultra 9, 285K, 64 GB, 1 TB, Windows 11 Pro, 64-bit
Processor family | Intel Core Ultra 9 |
Processor manufacturer | Intel |
Processor model | 285K |
Processor generation | Intel Core Ultra (Series 2) |
Processor cores | 24 |
Processor threads | 24 |
Processor boost frequency | 5.7 GHz |
Performance cores | 8 |
Efficient cores | 16 |
Performance-core Max Turbo Frequency | 5.5 GHz |
Efficient-core Max Turbo Frequency | 4.6 GHz |
Performance-core base frequency | 3.7 GHz |
Efficient-core base frequency | 3.2 GHz |
Processor cache | 36 MB |
Processor cache type | Smart Cache |
Processor base power | 125 W |
Maximum turbo power | 250 W |
Neural processor unit (NPU) | Intel AI Boost |
Sparsity support | Yes |
Windows Studio effects support | Yes |
AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
Total processor performance up to | 36 TOPs |
NPU performance up to | 13 TOPs |
GPU performance up to | 8 TOPs |
Internal memory | 64 GB |
Maximum internal memory | 128 GB |
Internal memory type | DDR5-SDRAM |
Memory layout (slots x size) | 2 x 32 GB |
Memory slots | 2x SO-DIMM |
Memory clock speed | 6400 MHz |
Total storage capacity | 1 TB |
Optical drive type | No |
Storage media | SSD |
Total SSDs capacity | 1 TB |
Number of SSDs installed | 1 |
SSD capacity | 1 TB |
SSD interface | PCI Express 4.0 |
NVMe | Yes |
SSD form factor | M.2 |
Discrete graphics card | No |
On-board graphics card | Yes |
Discrete graphics card model | Not available |
On-board graphics card model | Intel Graphics |
On-board GPU manufacturer | Intel |
On-board graphics card family | Intel Graphics |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
USB 2.0 ports quantity | 0 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Thunderbolt 3 ports quantity | 0 |
USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
DisplayPorts quantity | 3 |
Ethernet LAN (RJ-45) ports | 1 |
Combo headphone/mic port | Yes |
Chassis type | SFF |
Product color | Black |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Product type | Workstation |
Motherboard chipset | Intel W880 |
Audio chip | Realtek ALC623-CG |
Audio system | High Definition Audio |
Trusted Platform Module (TPM) | Yes |
Operating system installed | Windows 11 Pro |
Operating system architecture | 64-bit |
Power supply | 330 W |
Power supply input voltage | 100 - 240 V |
Power supply input frequency | 50/60 Hz |
Operating temperature (T-T) | 5 - 35 °C |
Storage temperature (T-T) | -40 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Storage relative humidity (H-H) | 10 - 90% |
Operating altitude | 0 - 120000" (0 - 3048 m) |
Non-operating altitude | 0 - 480000" (0 - 12192 m) |
Width | 3.43" (87 mm) |
Depth | 8.78" (223 mm) |
Height | 7.95" (202 mm) |
Weight | 7.94 lbs (3.6 kg) |
Mouse included | Yes |
Mouse connectivity | Wired |
Keyboard included | Yes |
Keyboard connectivity | Wired |
Display included | No |
