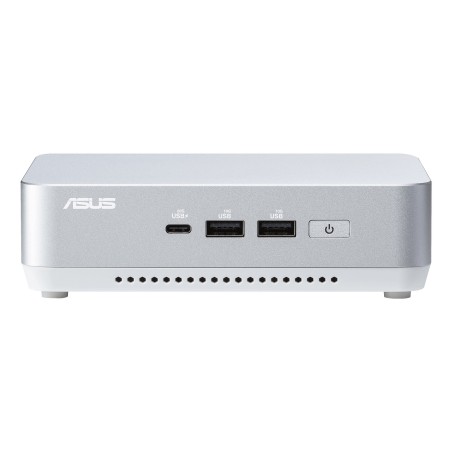

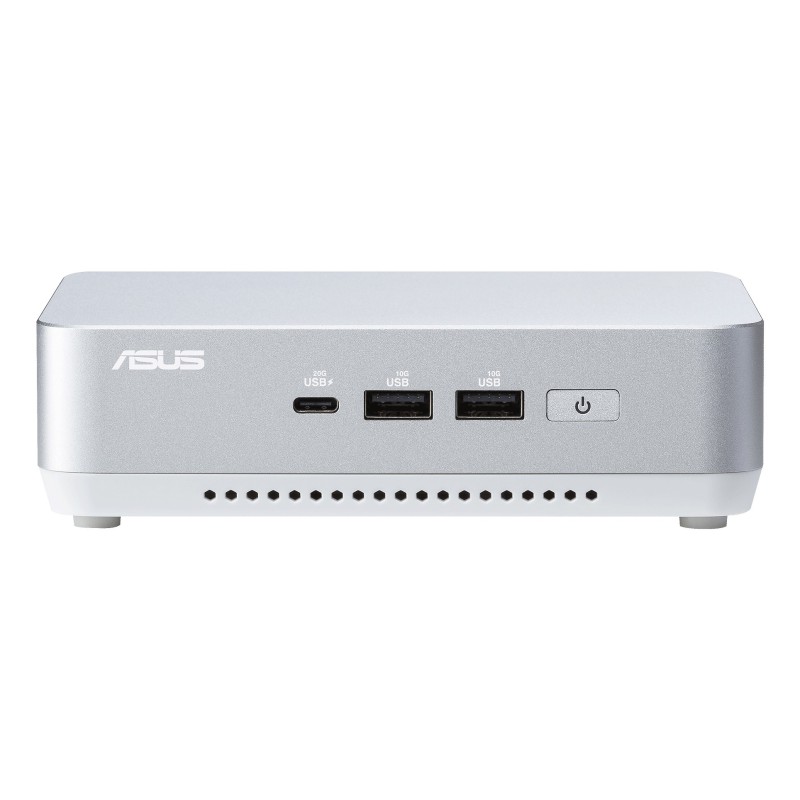

ASUS NUC 14 Pro+ RNUC14RVSU700002I UCFF White 155H

ASUS NUC 14 Pro+ RNUC14RVSU700002I. Chassis type: UCFF, Product type: Mini PC barebone. Supported memory types: DDR5-SDRAM, Number of memory slots: 2, Maximum internal memory: 96 GB. Supported storage drive types: SSD, Storage drive interface: PCI Express. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E..., Bluetooth version: 5.3. Cooling type: Active. Power supply: 120 W

Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	155H
Processor cores	16
Processor threads	22
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Thermal Design Power (TDP)	45 W
Internal memory installed	No
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	96 GB
Supported memory clock speeds	5600 MHz
Supported memory types	DDR5-SDRAM
Memory channels	Dual-channel
Storage drives installed	No
Supported storage drive types	SSD
Storage drive sizes supported	M.2
SSD form factor	M.2
Storage drive interface	PCI Express
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel Arc Graphics
Built-in speaker(s)	No
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.3
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	2
VGA (D-Sub) ports quantity	0
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB4 Gen 2×2 ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
DC-in jack	Yes
Chassis type	UCFF
Product color	White
Cooling type	Active
Product type	Mini PC barebone
On/off switch	Yes
VESA mounting	Yes
Power supply type	External AC adapter
Power supply	120 W
Number of power supply units	1
Width	5.67" (144 mm)
Depth	4.41" (112 mm)
Height	1.61" (41 mm)
Weight	28.2 oz (800 g)
AC adapter included	Yes
Quick start guide	Yes
