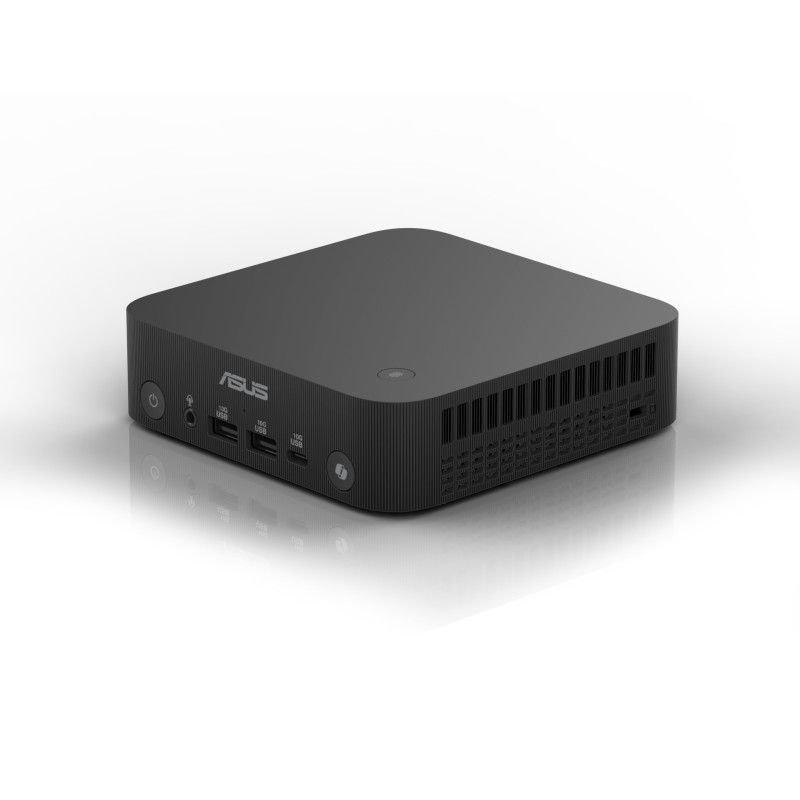

ASUS ExpertCenter PN54 -S50001NN AMD Ryzen AI 5 340 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Home Mini PC Black

ASUS ExpertCenter PN54 -S50001NN. Processor frequency: 2 GHz, Processor family: AMD Ryzen AI 5, Processor model: 340. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 840M. Operating system installed: Windows 11 Home, Operating system architecture: 64-bit. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 19.4 oz (550 g). Product color: Black

Processor family	AMD Ryzen AI 5
Processor manufacturer	AMD
Processor model	340
Processor frequency	2 GHz
Processor generation	AMD Ryzen AI 300 Series
Processor cores	6
Processor threads	12
Processor boost frequency	4.8 GHz
Processor cache	16 MB
Processor cache type	L2 & L3
Number of processors installed	1
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	59 TOPs
NPU performance up to	50 TOPs
Internal memory	16 GB
Maximum internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory layout (slots x size)	1 x 16 GB
Memory slots	2x SO-DIMM
Total storage capacity	512 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express 4.0
NVMe	Yes
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	AMD Radeon 840M
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.4
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
USB4 Gen 3×2 ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports	2
Combo headphone/mic port	Yes
DC-in jack	Yes
Number of rear USB ports	3
Number of front USB ports	3
Number of front audio ports	1
Chassis type	Mini PC
Product color	Black
Color name	Black
Placement supported	Horizontal
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Copilot key	Yes
Introduction year	2025
Product type	Mini PC
Market positioning	Business
Built-in speaker(s)	Yes
Number of speakers	2
Fingerprint reader	Yes
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Power supply	120 W
Certification	BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
Width	5.12" (130 mm)
Depth	5.12" (130 mm)
Height	1.34" (34 mm)
Weight	19.4 oz (550 g)
Package width	7.44" (189 mm)
Package depth	6.18" (157 mm)
Package height	5.28" (134 mm)
Package weight	3.26 lbs (1.48 kg)
Cables included	AC
Screws included	Yes
Manual	Yes
AC adapter included	Yes
Display included	No
