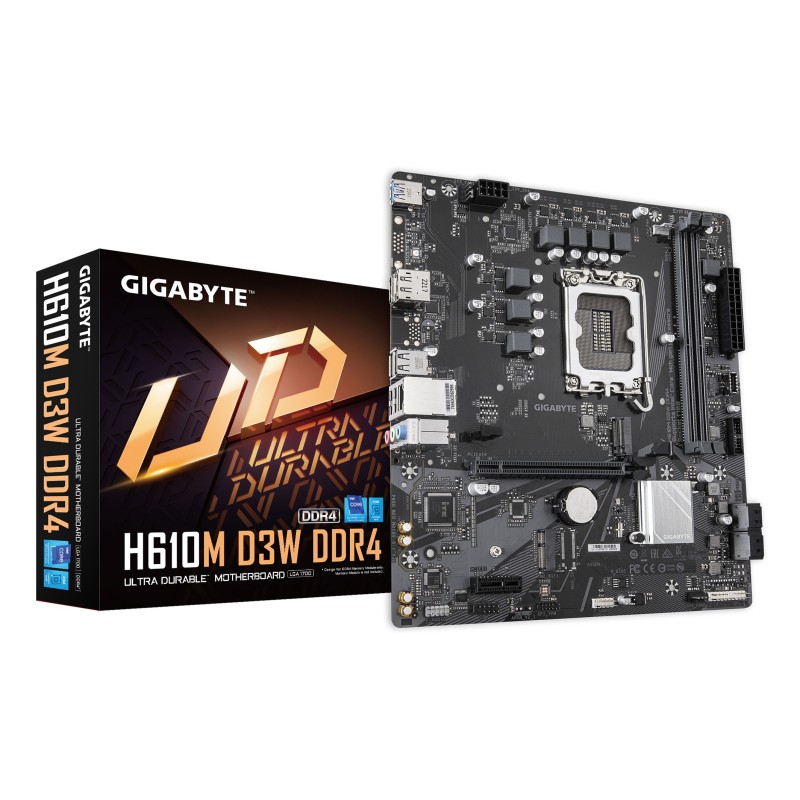

GIGABYTE H610M D3W DDR4 Mainboard - Unterstützt 14. Gen. Intel Core CPUs, 5+1+1 Phasen VRM, bis zu 3200 MHz DDR4, 1xPCIe 3.0 M.2, 1 GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR4-SDRAM, 64 GB
| Prozessorhersteller | Intel |
| Prozessorsockel | LGA 1700 |
| Kompatible Prozessoren | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® |
| Unterstützte Prozessorsteckplätze | LGA 1700 |
| Unterstützte Arbeitsspeicher | DDR4-SDRAM |
| Anzahl der Speichersteckplätze | 2 |
| RAM-Speicher maximal | 64 GB |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | ECC & Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 2133,2400,2666,2933,3000,3200 MHz |
| Unterstützte Speichertaktrate (max.) | 3200 MHz |
| Unbuffered Speicher | Ja |
| Maximaler interner Speicher pro Steckplatz | 32 GB |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2, SATA III |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 5 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| DirectX-Version | 12.0 |
| Anzahl USB 2.0 Schnittstellen | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 0 |
| SATA III Anschlüsse | 4 |
| Front Panel Audiostecker | Ja |
| Frontpanel-Stecker | Ja |
| ATX Stromstecker (24-pol.) | Ja |
| CPU Ventilatorstecker | Ja |
| Anzahl der CPU-Lüfteranschlüsse | 1 |
| Zahl der Chassisventilatorstecker | 2 |
| EPS Stromstecker (8-pin) | Ja |
| Anzahl der EPS-Stromanschlüsse (4--polig) | 1 |
| TPM-Anschluss | Ja |
| Serielle Port-Headers | 1 |
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ C | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 0 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl VGA (D-Sub) Anschlüsse | 0 |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DVI-D-Anschlüsse | 0 |
| HDMI-Version | 2.1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| DisplayPorts-Version | 1.2 |
| Line-in | Ja |
| Mikrofon-Eingang | Ja |
| WLAN | Nein |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Gigabit Ethernet |
| LAN-Controller | Realtek RTL8111H |
| Komponente für | PC |
| Motherboardformfaktor | micro ATX |
| Motherboard Chipsatz Familie | Intel |
| Motherboard Chipsatz | Intel H610 |
| Audio Kanäle | 7.1 Kanäle |
| Audio-Chip | Realtek ALC897 |
| Produktfarbe | Grau |
| PC Gesundheitsüberwachung | Ventilator, Temperatur, Spannung, Water cooling |
| Energiequelle | ATX |
| Unterstützt Windows-Betriebssysteme | Windows 10, Windows 11 |
| PCI-Express x1 (Gen 3.x)-Anschlüsse | 1 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 1 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 3.0 |
| BIOS-Typ | UEFI AMI |
| BIOS-Speichergröße | 128 Mbit |
| ACPI-Version | 5.0 |
| Clear CMOS-Jumper | Ja |
| Desktop Management Interface (DMI) Version | 2.7 |
| Systemverwaltung BIOS (SMBIOS) Version | 2.7 |
| Ursprungsland | China |
| Menge pro Versandkarton | 1 Stück(e) |
| Batteriegewicht | 3 g |
| Lithiumgewicht pro Akku | 0,07 g |
| Anzahl Batteriezellen | 1 |
| Akku-/Batterietechnologie | Lithium-Manganese Dioxide (LiMnO2) |
| Akku-/Batterietyp | CR2032 |
| Verpackungsbreite | 265 mm |
| Verpackungstiefe | 265 mm |
| Verpackungshöhe | 54 mm |
| Paketgewicht | 800 g |
| Breite | 244 mm |
| Tiefe | 220 mm |
| Höhe | 35 mm |
| Akkus/Batterien enthalten | Ja |
| Schrauben enthalten | Ja |
| Mitgelieferte Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Gewicht | 770 g |
| Garantiezeit | 3 Jahr(e) |
