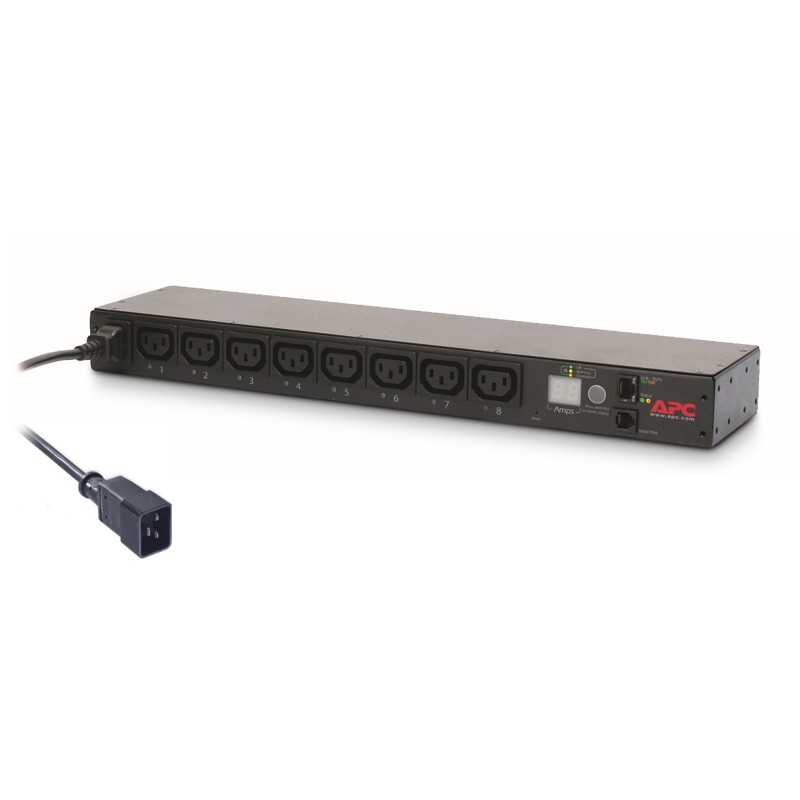

APC RACK PDU AP7921B geschaltet 1 U, 16 A, 208 / 230 V, (8)C13 AP7921B
| PDU types | Metered, Switched |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product color | Black |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| Input connection type | IEC-320 C20 |
| Cable length | 98.4" (2.5 m) |
| Monitoring | Current, Power, Voltage |
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Nominal input voltage | 200-230 V |
| Maximum current | 16 A |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 208-230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
| Compliance certificates | RoHS |
| Certification | cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 39.4 - 590551.2" (1 - 15000 m) |
| Width | 17.5" (445 mm) |
| Depth | 4.25" (108 mm) |
| Height | 1.73" (44 mm) |
| Weight | 5 lbs (2.27 kg) |
| Package weight | 7.61 lbs (3.45 kg) |
| Package width | 18.5" (470 mm) |
| Package depth | 13.5" (343 mm) |
| Package height | 2.76" (70 mm) |
| Total carbon footprint (kg of CO2e) | 915.89 |
