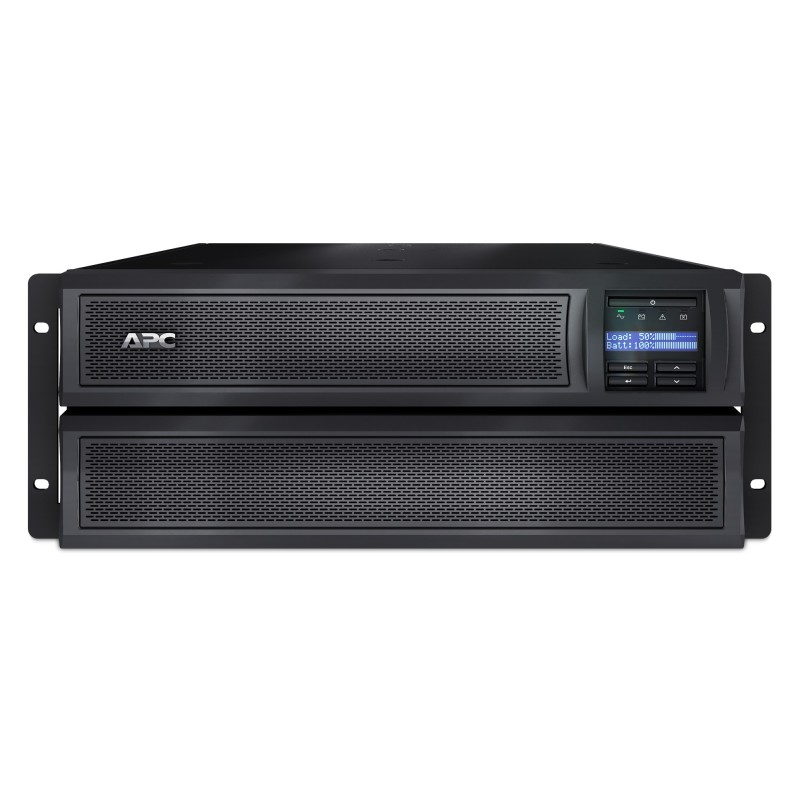

APC Smart-UPS, Line-Interactive, 3 kVA, 2700 W, Sine, 140 V, 280 V
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Output frequency regulation | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 645 J |
| Hold time (min) | 2 ms |
| Hold time (max) | 10 ms |
| Efficiency | 98.5% |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| SmartSlot | Yes |
| SmartConnect port | No |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 738 VAh |
| Typical backup time at full load | 6.25 min |
| Typical backup time at half load | 18 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Form factor | Rackmount/Tower |
| Product color | Black, Stainless steel |
| Rack capacity | 4U |
| Cable length | 72" (1.83 m) |
| Display type | LCD |
| LED indicators | Status |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Compliance certificates | RoHS |
| Certification | C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH |
| Rack mount kit | Yes |
| Cables included | RS-232, USB cable |
| Management card included | No |
| Manual | Yes |
| Quick installation guide | Yes |
| Width | 7.01" (178 mm) |
| Depth | 19" (483 mm) |
| Height | 17" (432 mm) |
| Weight | 85.1 lbs (38.6 kg) |
| Software CD | Yes |
| Package width | 23.1" (586 mm) |
| Package depth | 24.9" (633 mm) |
| Package height | 13" (330 mm) |
| Package weight | 105.2 lbs (47.7 kg) |
| Quantity per pallet | 6 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 2447.6 |
| Nominal output voltage | 230 V |
