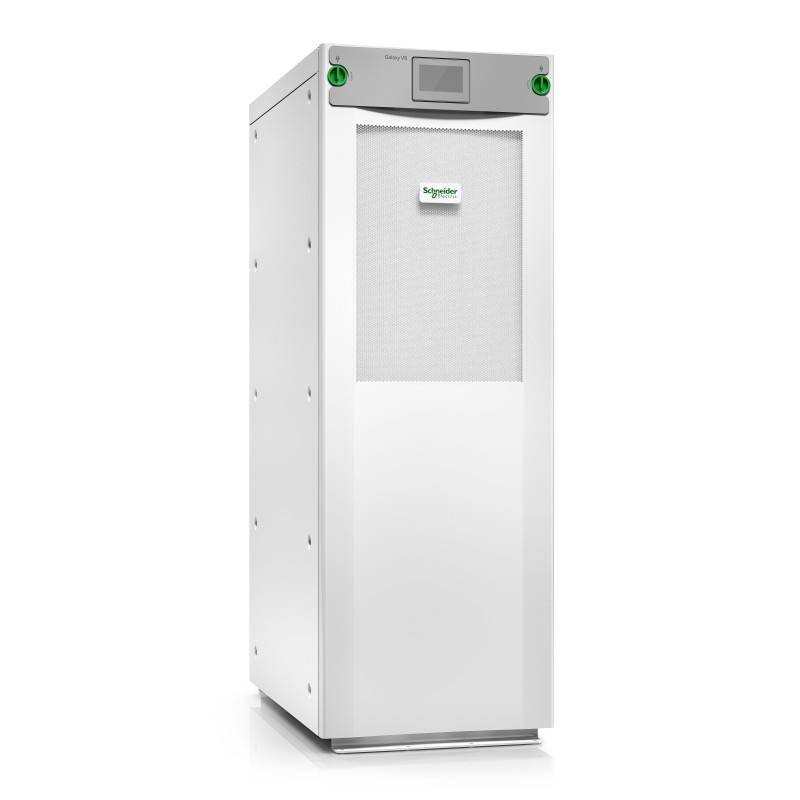

APC GVSUPS20KB4HS uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W

APC GVSUPS20KB4HS. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. AC outlet types: Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G). Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 480 V. Form factor: Tower, Product color: White, Display type: LCD. Certification: CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL...

UPS topology	Double-conversion (Online)
Output power capacity	20 kVA
Output power	20000 W
Waveform	Sine
Input operation voltage (min)	340 V
Input operation voltage (max)	460 V
Input frequency	40/70 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	36 A
Number of input phases	3
Number of output phases	3
Input power factor	0.99
Crest factor	2.5:1
ECO mode	Yes
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	3%
Noise level	55 dB
Power protection features	Overload, Short circuit
Audible alarm(s)	Yes
AC outlet types	Hard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
SmartSlot	Yes
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	480 V
Form factor	Tower
Product color	White
Display type	LCD
International Protection (IP) code	IP20
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Certification	CSA C22.2 NO. 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 Level 2M2, UL 1778 5th edition
Quick installation guide	Yes
Width	20.5" (521 mm)
Depth	33.3" (847 mm)
Height	58.5" (1485 mm)
Weight	727.5 lbs (330 kg)
Package width	25.2" (640 mm)
Package depth	39" (990 mm)
Package height	66.1" (1680 mm)
Package weight	793.7 lbs (360 kg)
Harmonized System (HS) code	85078000
