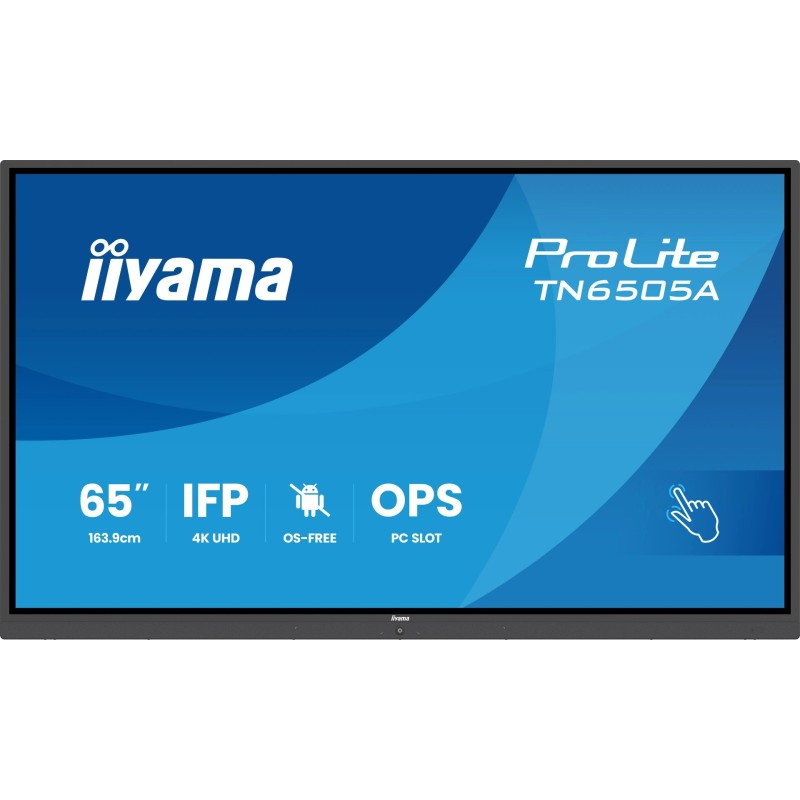

iiyama TN6505A-B1AG, Interactive flat panel, 64.5", 3840 x 2160 pixels
| Display diagonal | 64.5" |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Panel type | IPS |
| Touchscreen technology | Infrared |
| Native aspect ratio | 16:9 |
| Response time | 5 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Active display area (W x H) | 56.2 x 31.6" (1428.5 x 803.5 mm) |
| Display diagonal (metric) | 64.5" (163.9 cm) |
| Horizontal scan range | 30 - 135 kHz |
| Haze rate | 25% |
| Surface hardness | 7H |
| Glass thickness | 0.126" (3.2 mm) |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| HDMI input ports quantity | 2 |
| VGA (D-Sub) input ports | 1 |
| USB ports quantity | 1 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-C, USB Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 65 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| PC Audio in | Yes |
| RS-232C | Yes |
| Remote (IR) output | 1 |
| PC Audio out | Yes |
| OPS module slot | Yes |
| Audio Return Channel (ARC) | Yes |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Product design | Interactive flat panel |
| Product color | Black |
| Placement supported | Indoor |
| VESA mounting | Yes |
| Orientation | Horizontal |
| Screen shape | Flat |
| Panel mounting interface | 600 x 400 mm |
| Anti-glare screen | Yes |
| Positioning accuracy | 0.0394" (1 mm) |
| Purpose | Education |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Russian |
| Power consumption (typical) | 146 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 146 kWh |
| Energy efficiency scale | A to G |
| Display width | 58.6" (1489.1 mm) |
| Display depth | 4.67" (118.6 mm) |
| Display height | 35.9" (911.8 mm) |
| Display weight | 90.6 lbs (41.1 kg) |
| Width | 58.6" (1489.1 mm) |
| Depth | 4.67" (118.6 mm) |
| Height | 35.9" (911.8 mm) |
| Weight | 90.6 lbs (41.1 kg) |
| Cables included | AC, HDMI, RS-232 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN | Yes |
| OPS slot | 1 |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| Brightness | 450 cd/m² |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Audio in (mini jack) | Yes |
| User controls | Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast. |
