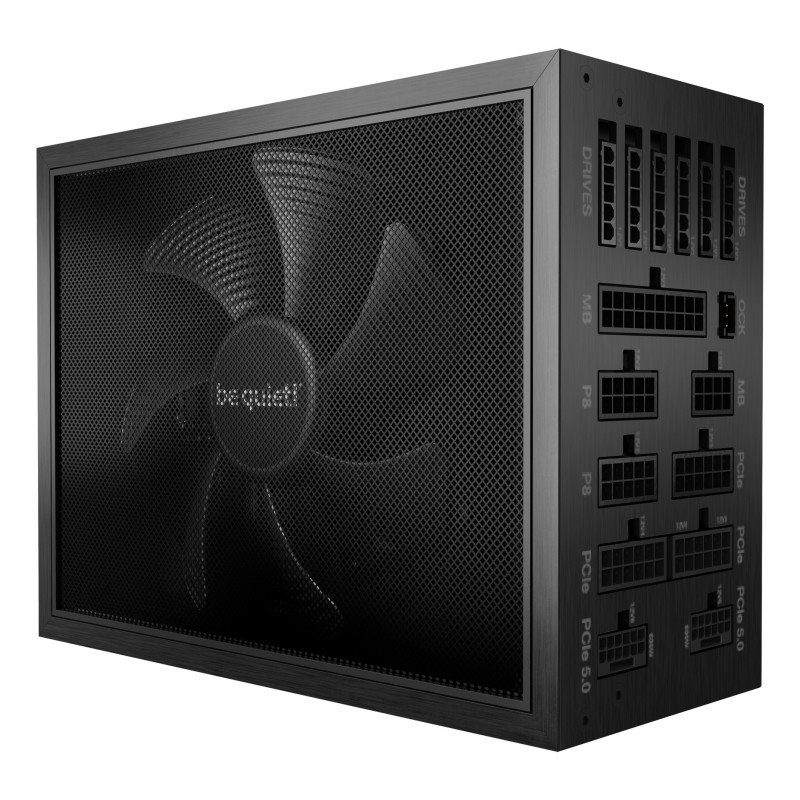

be quiet! Dark Power Pro 13 1600 Watt ATX 3.0 PCIe 5.0 80+ Titanium Netzteil
| Total power | 1600 W |
| AC input voltage | 115 - 240 V |
| Peak power | 1700 W |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 - 9 A |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 40 A |
| Max output current (+12V2) | 40 A |
| Max output current (+12V3) | 45 A |
| Max output current (+12V4) | 45 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Hold time | 18 ms |
| Efficiency | 94.5% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 0 |
| Motherboard power cable length | 23.6" (60 cm) |
| Number of SATA power connectors | 16 |
| Number of PATA power connectors | 5 |
| SATA power cable length | 500,600,750,800,900,950,1050 mm |
| Peripheral (Molex) power cable length | 600,750,900,1050 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 23.6" (60 cm) |
| CPU power cable length | 27.6" (70 cm) |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 31.1 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product color | Black |
| Cooling type | Active |
| Fan diameter | 5.31" (13.5 cm) |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
| Width | 5.91" (150 mm) |
| Depth | 7.87" (200 mm) |
| Height | 3.39" (86 mm) |
| Weight | 5.38 lbs (2.44 kg) |
| Package width | 9.96" (253 mm) |
| Package depth | 16.4" (417 mm) |
| Package height | 5.98" (152 mm) |
| Package weight | 15.2 lbs (6.9 kg) |
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Shipping (inner) case length | 17.3" (44 cm) |
| Shipping (inner) case width | 12.8" (32.5 cm) |
| Shipping (inner) case height | 11.1" (28.3 cm) |
| Shipping (inner) case net weight | 32.2 lbs (14.6 kg) |
| Quantity per shipping (inner) case | 2 pc(s) |
| Sustainability compliance | Yes |
| Warranty period | 10 year(s) |
