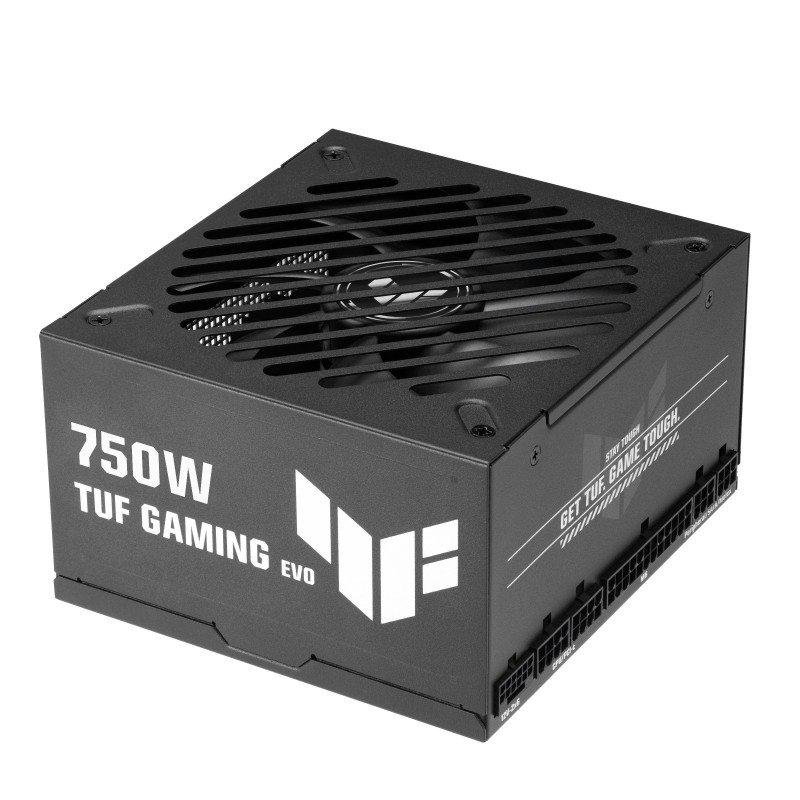

ASUS TUF-GAMING-750G-EVO power supply unit 750 W 20+4 pin ATX ATX Black

ASUS TUF-GAMING-750G-EVO. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 19.7" (50 cm), SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, Peripheral (Molex), SATA

Total power	750 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	110 W
Combined power (+12V)	750 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	2
Motherboard power cable length	19.7" (50 cm)
Number of SATA power connectors	4
SATA power cable length	400,120 mm
Peripheral (Molex) power cable length	400,120 mm
PCI Express power connectors (6+2 pin)	2
PCI Express power connectors (16-pin)	1
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	DBB
Mean time between failures (MTBF)	120000 h
Product color	Black
Cooling type	Active
Number of fans	1 fan(s)
Fan location	Top
Illumination	No
On/off switch	Yes
Cables included	CPU, PCIe, Peripheral (Molex), SATA
Width	5.51" (140 mm)
Depth	5.91" (150 mm)
Height	3.39" (86 mm)
Weight	2.91 lbs (1.32 kg)
Package width	12.6" (320 mm)
Package depth	7.17" (182 mm)
Package height	5" (127 mm)
Package weight	4.54 lbs (2.06 kg)
Package type	Box
