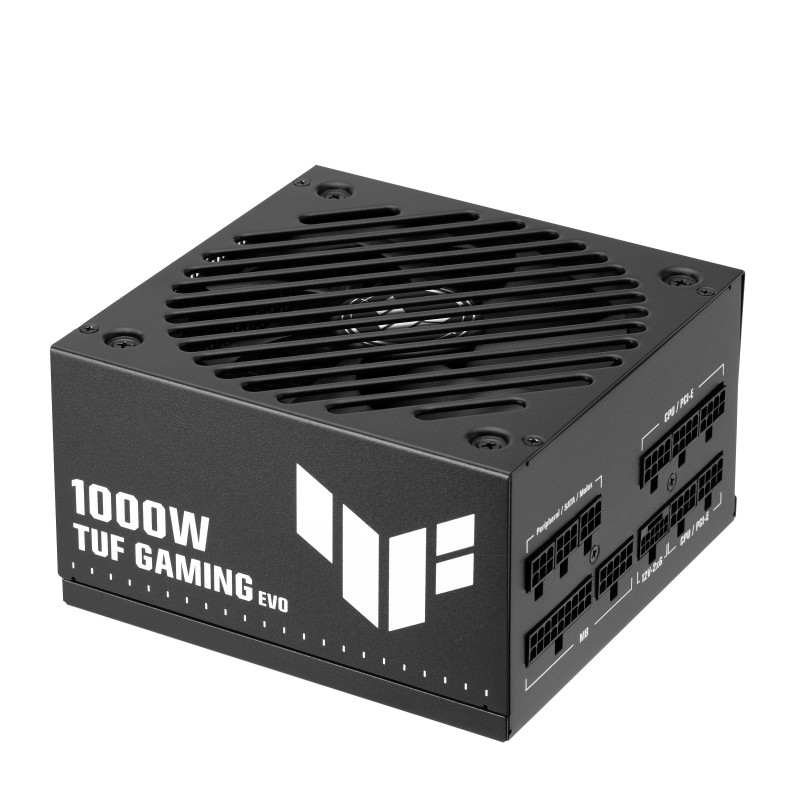

ASUS TUF Gaming 1000W Gold EVO power supply unit 20+4 pin ATX ATX Black

ASUS TUF Gaming 1000W Gold EVO. Total power: 1000 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 24" (61 cm), Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: Black, Cooling type: Active, Fan diameter: 5.31" (13.5 cm). Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Total power	1000 W
AC input voltage	100 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	125 W
Combined power (+12V)	1000 W
Combined power (+5V)	125 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	83.33 A
Max output current (+5V)	25 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage, Overheating
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	24" (61 cm)
Number of SATA power connectors	6
PCI Express power connectors (6+2 pin)	3
PCI Express power connectors (16-pin)	1
CPU power connector (4+4 pin)	Yes
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	3.1
Bearing technology	Ball bearing
Mean time between failures (MTBF)	120000 h
Product color	Black
Cooling type	Active
Fan diameter	5.31" (13.5 cm)
Number of fans	1 fan(s)
On/off switch	Yes
Cables included	AC, CPU, PCIe, Peripheral (Molex), SATA
Compliance certificates	RoHS
Width	5.91" (150 mm)
Depth	5.91" (150 mm)
Height	3.39" (86 mm)
Weight	3.79 lbs (1.72 kg)
Package width	11.1" (282 mm)
Package depth	7.17" (182 mm)
Package height	5" (127 mm)
Package weight	6.99 lbs (3.17 kg)
Package type	Box
Warranty period	8 year(s)
