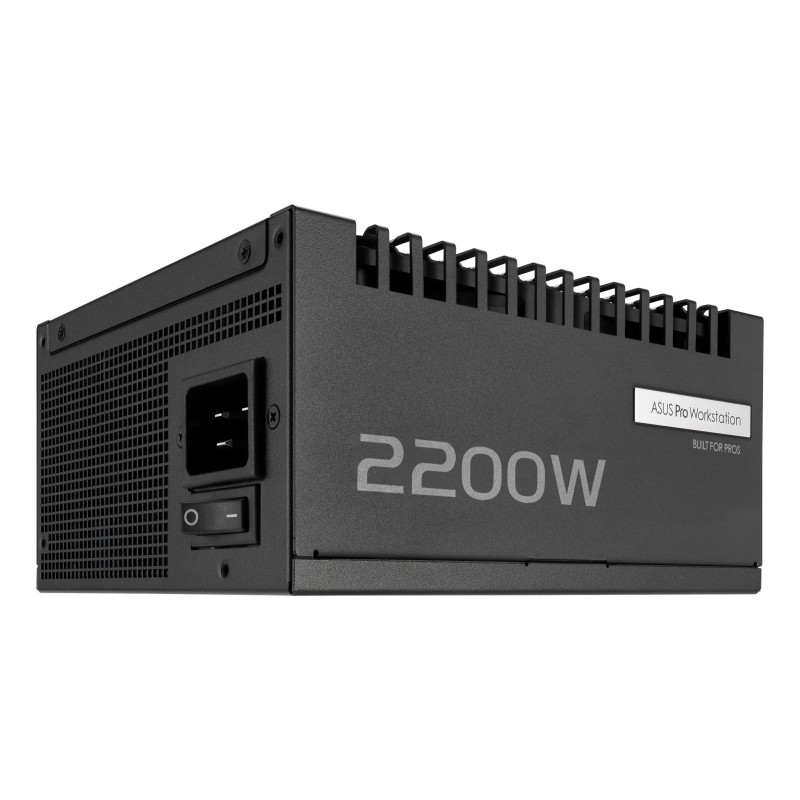

ASUS Pro WS 2200W Platinum power supply unit 20+4 pin ATX ATX Black

ASUS Pro WS 2200W Platinum. Total power: 2200 W, AC input voltage: 200 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 24" (61 cm), SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product color: Black, Cooling type: Active. Compliance certificates: RoHS

Total power	2200 W
AC input voltage	200 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	2200 W
Combined power (+5V)	130 W
Combined power (-12V)	9.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	25 A
Max output current (+12V)	183.3 A
Max output current (+5V)	25 A
Max output current (-12V)	0.8 A
Max output current (+5Vsb)	3 A
Efficiency	92%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	24" (61 cm)
Number of SATA power connectors	12
SATA power cable length	120,400 mm
Peripheral (Molex) power cable length	150,400 mm
PCI Express power connectors (6+2 pin)	4
PCI Express power connectors (16-pin)	4
PCI Express power cable length	29.5" (75 cm)
CPU power connector (4+4 pin)	Yes
CPU power cable length	39.4" (100 cm)
ATX power connector (20+4 pin)	Yes
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
Bearing technology	Ball bearing
Product color	Black
Cooling type	Active
On/off switch	Yes
Compliance certificates	RoHS
Width	5.91" (150 mm)
Depth	6.89" (175 mm)
Height	3.39" (86 mm)
Weight	4.7 lbs (2.13 kg)
Package width	13.6" (346 mm)
Package depth	8.19" (208 mm)
Package height	5.67" (144 mm)
Package weight	11.2 lbs (5.06 kg)
Package type	Box
Warranty period	10 year(s)
