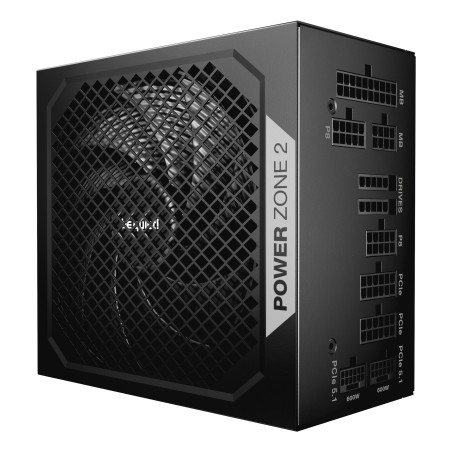

be quiet! POWER ZONE 2 1200 W power supply unit 20+4 pin ATX ATX Black

be quiet! POWER ZONE 2 | 1200 W. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1270 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 23.6" (60 cm), SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product color: Black, Cooling type: Active, Fan diameter: 5.51" (14 cm). Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE

Total power	1200 W
AC input voltage	100 - 240 V
Peak power	1270 W
AC input frequency	50/60 Hz
Maximum input current (@110V)	15 A
Maximum input current (@220V)	7.5 A
Power factor	0.97
Number of +12V rail(s)	1
Combined power (+3.3V)	120 W
Combined power (+12V)	1200 W
Combined power (+5V)	120 W
Combined power (-12V)	6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	100 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Hold time	20.42 ms
Efficiency	92.7%
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	1
Motherboard power cable length	23.6" (60 cm)
Number of SATA power connectors	7
SATA power cable length	550,700,850,1000 mm
Number of SATA power cables	2
Peripheral (Molex) power cable length	1000 mm
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	3
PCI Express power connectors (12-pin)	2
PCI Express power cable length	23.6" (60 cm)
CPU P4 connector (4-pin)	1
CPU power connector (4+4 pin)	Yes
CPU power cable length	27.6" (70 cm)
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Platinum
ATX version	3.1
EPS version	2.92
Noise level	25.5 dB
Bearing technology	Rifle
Mean time between failures (MTBF)	100000 h
Product color	Black
Cooling type	Active
Fan diameter	5.51" (14 cm)
Number of fans	1 fan(s)
Fan speed	0 - 2100 RPM
On/off switch	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 95%
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Compliance certificates	BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Width	5.91" (150 mm)
Depth	6.3" (160 mm)
Height	3.39" (86 mm)
Weight	4.14 lbs (1.88 kg)
Manual	Yes
Manual languages	German, English, Spanish, French, Polish, Russian, Ukrainian
Package width	9.76" (248 mm)
Package depth	12.9" (328 mm)
Package height	4.02" (102 mm)
Package weight	7.72 lbs (3.5 kg)
Package type	Box
Sustainability certificates	ENERGY STAR, ErP, Triman
Shipping (inner) case length	16.9" (43 cm)
Shipping (inner) case width	10.4" (26.5 cm)
Shipping (inner) case height	13.4" (34 cm)
Quantity per shipping (inner) case	4 pc(s)
Shipping (inner) case weight	32.8 lbs (14.9 kg)
Screws included	Yes
Cable ties included	Yes
