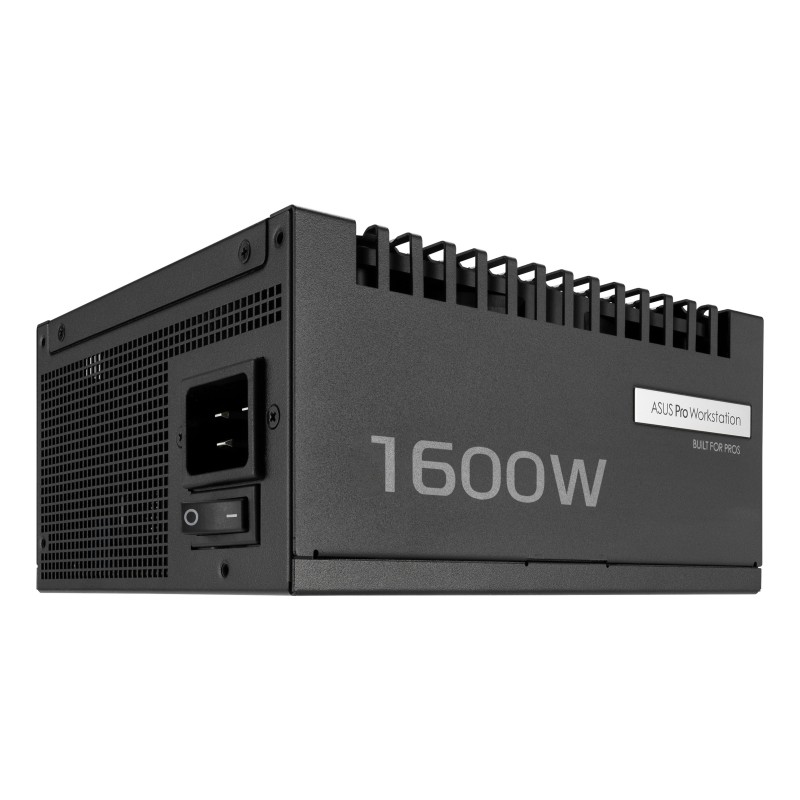

ASUS Pro WS 1600W Platinum. Total power: 1600 W, AC input voltage: 200 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 24" (61 cm), SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product color: Black, Cooling type: Active. Compliance certificates: RoHS
| Total power | 1600 W |
| AC input voltage | 200 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power cable length | 24" (61 cm) |
| Number of SATA power connectors | 9 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power cable length | 29.5" (75 cm) |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 39.4" (100 cm) |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | Ball bearing |
| Product color | Black |
| Cooling type | Active |
| On/off switch | Yes |
| Compliance certificates | RoHS |
| Width | 5.91" (150 mm) |
| Depth | 6.89" (175 mm) |
| Height | 3.39" (86 mm) |
| Weight | 4.41 lbs (2 kg) |
| Package width | 13.6" (346 mm) |
| Package depth | 8.19" (208 mm) |
| Package height | 5.67" (144 mm) |
| Package weight | 9.7 lbs (4.4 kg) |
| Package type | Box |
| Warranty period | 10 year(s) |
