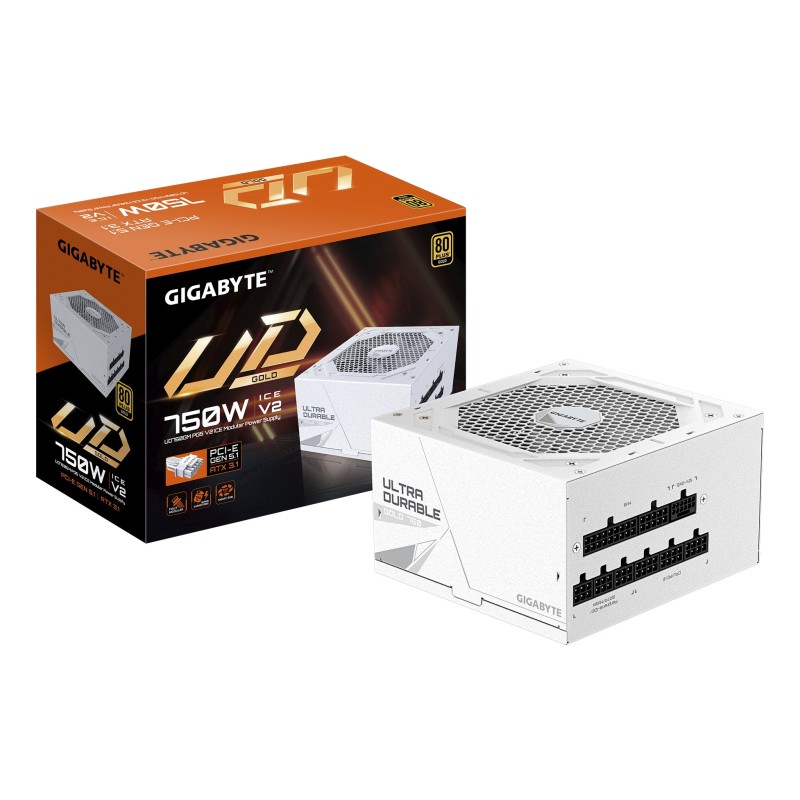

GIGABYTE UD750GM PG5 V2 ICE. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 24" (61 cm), PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: White, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 5.91" (150 mm), Depth: 5.51" (140 mm), Height: 3.39" (86 mm)
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12 - 6.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power cable length | 24" (61 cm) |
| Number of SATA power connectors | 8 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 700 mm |
| PCI Express power cable length | 23.6" (60 cm) |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 25.6" (65 cm) |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Number of EPS connectors | 2 |
| Cabling type | Fully-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Mean time between failures (MTBF) | 100000 h |
| Product color | White |
| Cooling type | Active |
| Fan diameter | 4.72" (12 cm) |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Width | 5.91" (150 mm) |
| Depth | 5.51" (140 mm) |
| Height | 3.39" (86 mm) |
| Weight | 5.16 lbs (2.34 kg) |
| Package width | 24.3" (618 mm) |
| Package depth | 10.6" (269 mm) |
| Package height | 8.31" (211 mm) |
| Package weight | 5.51 lbs (2.5 kg) |
| Package type | Box |
| Warranty period | 5 year(s) |
