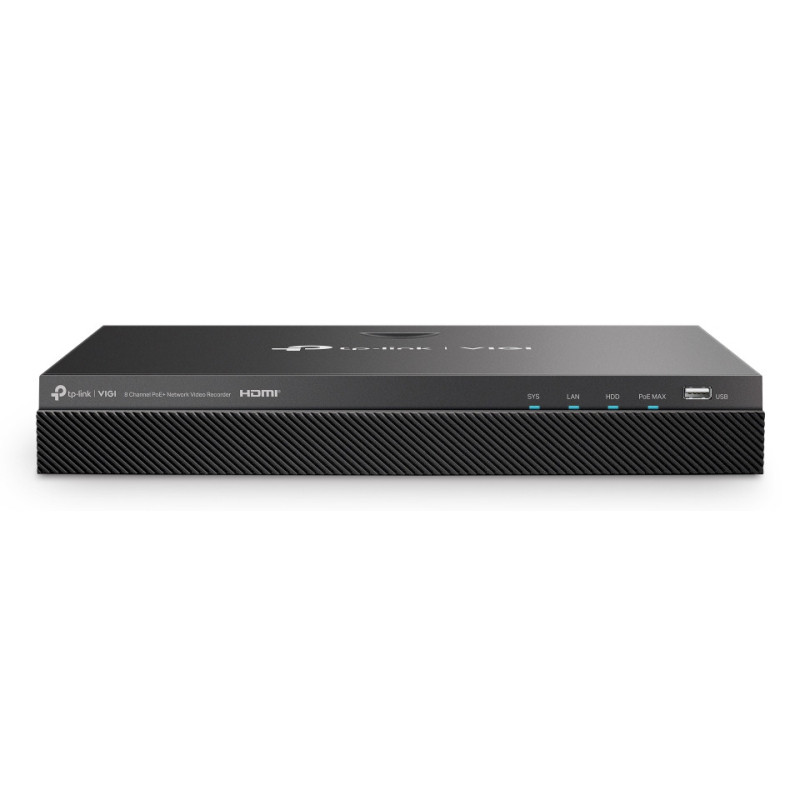

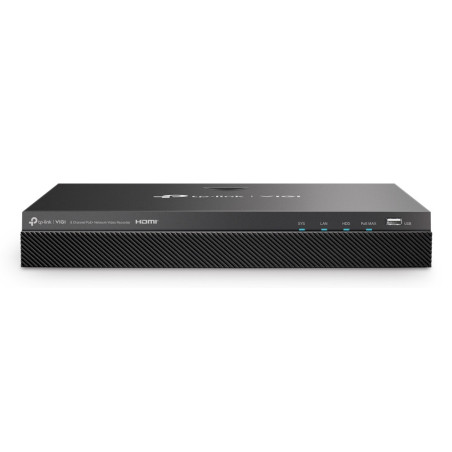

TP-Link VIGI NVR2008H-8MP-2TB, 8 channels, 3840 x 2160 pixels, 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720, G.711, G.711u, G.726, H.264, H.264+, H.265, H.265+, 60 fps
Video input channels | 8 channels |
Maximum resolution | 3840 x 2160 pixels |
Supported resolutions | 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720 |
Video motion detection | Yes |
Video loss detection | Yes |
Audio formats supported | G.711, G.711u, G.726 |
Video formats supported | H.264, H.264+, H.265, H.265+ |
Maximum frame rate | 60 fps |
Input bandwidth | 80 Mbit/s |
Output bandwidth | 60 Mbit/s |
Wi-Fi | No |
Number of HDDs installed | 1 |
HDD capacity | 2 TB |
Maximum storage capacity | 32 TB |
HDD interface | SATA |
Number of HDDs supported | 2 |
Total installed storage capacity | 2 TB |
Ethernet LAN (RJ-45) ports | 9 |
Power over Ethernet (PoE) | Yes |
Ethernet LAN data rates | 10,100 Mbit/s |
HDMI output | Yes |
HDMI ports quantity | 1 |
VGA (D-Sub) output ports | 1 |
USB 2.0 ports quantity | 2 |
Audio RCA inputs | 1 |
Audio RCA outputs | 1 |
eSATA ports quantity | 1 |
eSATA | Yes |
DC-in jack | Yes |
LED indicators | Yes |
Product color | Black |
Power consumption (typical) | 35 W |
Output current | 2.43 A |
Output voltage | 53.5 V |
Power over Ethernet (PoE) power per port | 30 W |
Total Power over Ethernet (PoE) budget | 93 W |
Operating temperature (T-T) | -10 - 55 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Storage relative humidity (H-H) | 10 - 90% |
Width | 13" (330 mm) |
Depth | 11.2" (285 mm) |
Height | 1.77" (45 mm) |
Weight | 4.63 lbs (2.1 kg) |
Package weight | 9.04 lbs (4.1 kg) |
