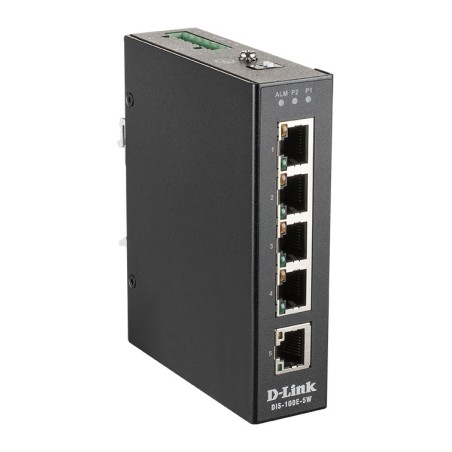

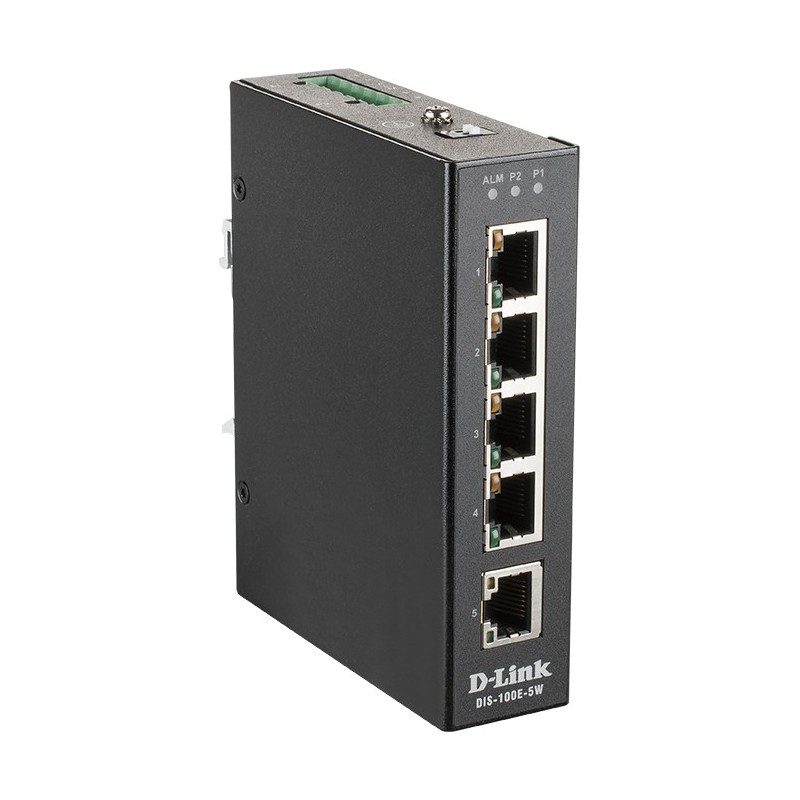

D-Link DIS-100E-5W, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Rack mounting, Wall mountable
| Switch type | Unmanaged |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Relay outputs | 1 |
| Networking standards | IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address table | 1000 entries |
| Store-and-forward | Yes |
| Rack mounting | Yes |
| Stackable | Yes |
| Product color | Black |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Certification | UL 60950‑1 CE FCC |
| Plug and Play | Yes |
| Mean time between failures (MTBF) | 219000 h |
| Shipping (inner) case height | 7.87" (20 cm) |
| Shipping (inner) case width | 12" (30.5 cm) |
| Shipping (inner) case length | 16.9" (43 cm) |
| Shipping (inner) case net weight | 12.7 lbs (5.78 kg) |
| Quantity per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 499.1 lbs (226.4 kg) |
| Number of cartons per pallet (air) | 36 pc(s) |
| Quantity per pallet (air) | 360 pc(s) |
| Pallet length | 47.2" (120 cm) |
| Pallet width | 43.3" (110 cm) |
| Pallet height (air) | 53.1" (135 cm) |
| Pallet gross weight (sea) | 729.1 lbs (330.7 kg) |
| Number of cartons per pallet (sea) | 54 pc(s) |
| Quantity per pallet (sea) | 540 pc(s) |
| Pallet height (sea) | 76.8" (195 cm) |
| Shipping (inner) case weight | 12.8 lbs (5.79 kg) |
| DC input voltage | 12 - 58 V |
| Power consumption (typical) | 0.95 W |
| Power consumption (max) | 1.56 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 1.15" (29.1 mm) |
| Depth | 3.52" (89.4 mm) |
| Height | 4.3" (109.2 mm) |
| Weight | 11.3 oz (320 g) |
| Package width | 5.51" (140 mm) |
| Package depth | 7.01" (178 mm) |
| Package height | 3.27" (83 mm) |
| Package weight | 17.2 oz (488 g) |
| Harmonized System (HS) code | 85176990 |
