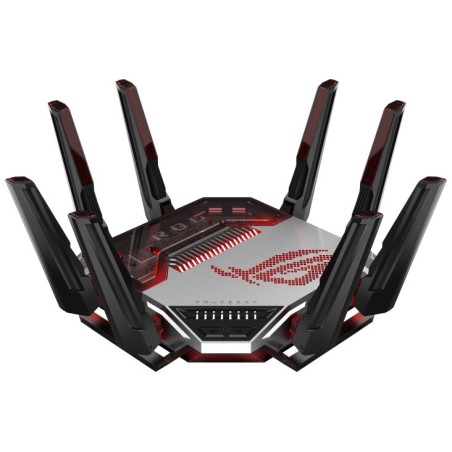

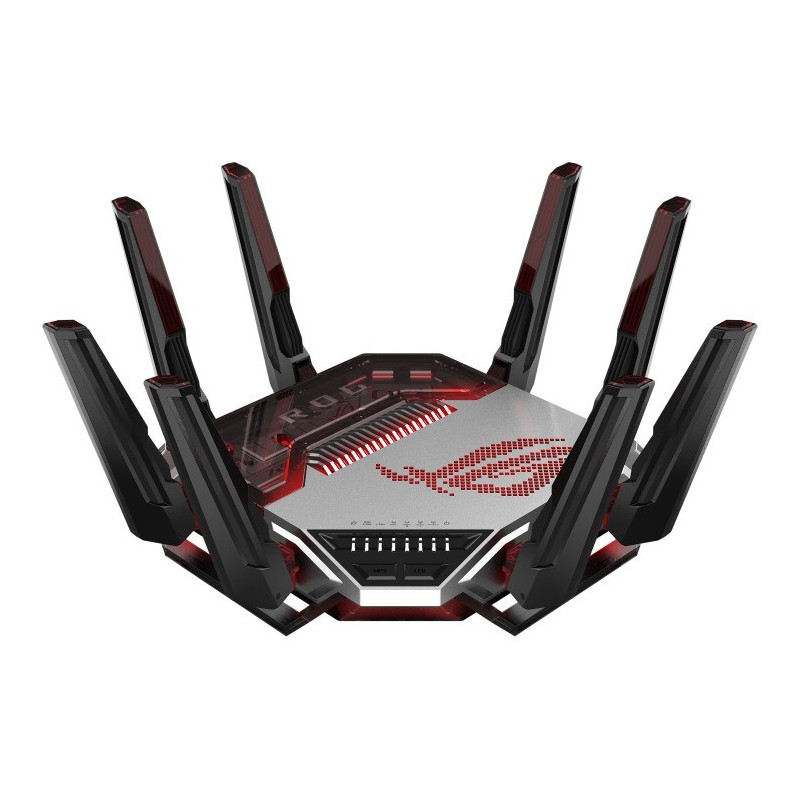

ASUS ROG Rapture GT-BN98 wireless router 10 Gigabit Ethernet Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz) Black, White

ASUS ROG Rapture GT-BN98. WAN connection type: RJ-45. Wi-Fi band: Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz), Top Wi-Fi standard: Wi-Fi 8 (802.11bn), WLAN data transfer rate (max): 11529 Mbit/s. Ethernet LAN interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 1000,2500,10000 Mbit/s, Cabling technology: 10/100/1000/2500/5000/10000Base-T. Security algorithms: WPA, WPA2, WPA3-Personal, WPA3-Enterprise, NAT functionality: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay. Product type: Tabletop router, Product color: Black, White, LED indicators: WAN, LAN, Power

Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes
WAN connection type	RJ-45
Wi-Fi band	Quad-band (2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz)
Top Wi-Fi standard	Wi-Fi 8 (802.11bn)
WLAN data transfer rate (max)	11529 Mbit/s
Wi-Fi standards	Wi-Fi 8 (802.11bn)
WLAN data transfer rate (first band)	1376 Mbit/s
WLAN data transfer rate (second band)	5764 Mbit/s
WLAN data transfer rate (third band)	5764 Mbit/s
WLAN data transfer rate (fourth band)	11529 Mbit/s
Modulation	4096-QAM, OFDMA
Ethernet LAN	Yes
Ethernet LAN interface type	10 Gigabit Ethernet
Ethernet LAN data rates	1000,2500,10000 Mbit/s
Cabling technology	10/100/1000/2500/5000/10000Base-T
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
VPN server	IPSec, Open VPN, PPTP, WireGuard
VPN support	VPN Client (L2TP, Open VPN, PPTP, WireGuard), VPN Server (IPSec, Open VPN, PPTP, WireGuard), VPN Fusion, Instant Guard, Support Surfshark, Support Nord VPN
Ethernet LAN (RJ-45) ports	7
USB port	Yes
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
DC-in jack	Yes
Web-based management	Yes
Bandwidth control	Yes
Quality of Service (QoS) support	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes
MIMO	Yes
Security algorithms	WPA, WPA2, WPA3-Personal, WPA3-Enterprise
Firewall	Yes
Guest access	Yes
Parental control	Yes
Filtering	Yes
MAC address filtering	Yes
URL filtering	Yes
System event log	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
NAT functionality	PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
DHCP server	Yes
Product type	Tabletop router
Product color	Black, White
LED indicators	WAN, LAN, Power
Cables included	LAN (RJ-45)
AC adapter included	Yes
Warranty card	Yes
Quick start guide	Yes
Antenna design	External
Antennas quantity	8
Built-in processor	Yes
Processor frequency	2600 MHz
Processor cores	4
Internal memory	2000 MB
Flash memory	256 MB
Power source type	DC
AC input voltage	110 - 240 V
AC input frequency	50/60 Hz
Output voltage	12 - 19.5 V
Output current	5 A
External power adapter	Yes
