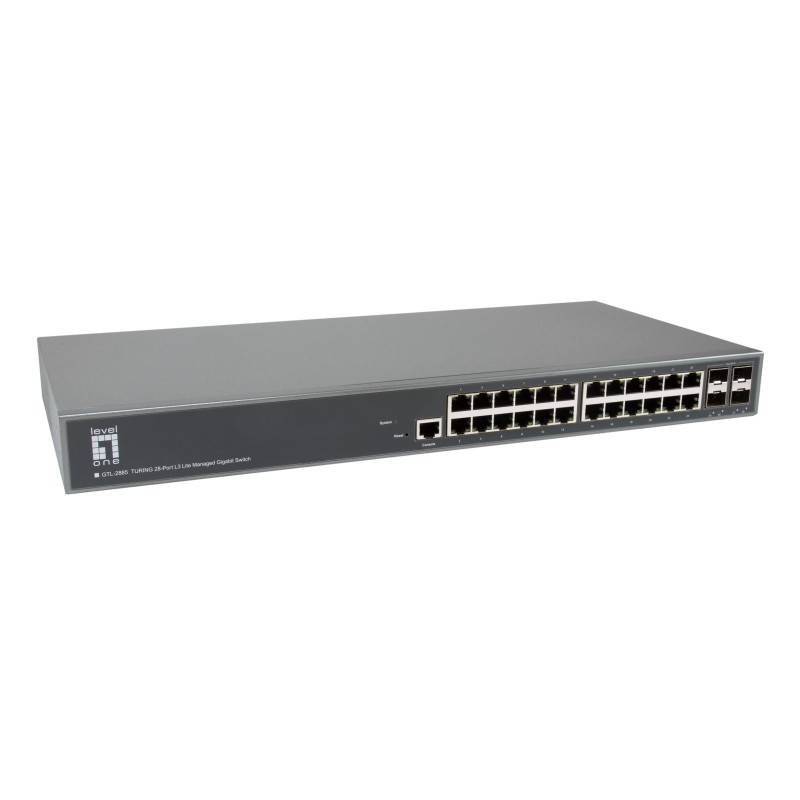

LevelOne GTL-2885 network switch Managed L3 Gigabit Ethernet (10/100/1000) Gray

LevelOne GTL-2885. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1v, IEEE 802.3ad, IEEE.... Power connector: AC-in jack. Rack mounting

Switch type	Managed
Switch layer	L3
Web-based management	Yes
Traffic classification	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4
Console port	RJ-45
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1v, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Private VLAN, Voice VLAN, Protocol-based VLAN, MAC address-based VLAN, IP subnet–based VLAN
Number of VLANs	4096
MAC address table	32000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.238 Mpps
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	10000
DHCP features	DHCP server, DHCPv6 server, DHCP relay, DHCP Option 82, DHCP client, DHCPv6 client, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	Guest VLAN
Authentication type	RADIUS, TACACS+
Multicast support	Yes
Multicast MAC address table	1024 entries
Multicast Listener Discovery (MLD) snooping	Y
GARP VLAN Registration Protocol (GVRP)	Yes
IP Source Guard (IPSG)	Yes
Rack mounting	Yes
Product color	Gray
Firmware upgradeable	Yes
Plug and Play	Yes
sFlow	Yes
Fanless	No
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	30 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	5 - 95%
Width	17.4" (442 mm)
Depth	8.31" (211 mm)
Height	1.73" (44 mm)
Weight	5.89 lbs (2.67 kg)
Cables included	AC, LAN (RJ-45) to DB9
Quick start guide	Yes
Rack mount kit	Yes
Rubber feet	Yes
Package width	20.5" (520 mm)
Package depth	11.8" (300 mm)
Package height	3.54" (90 mm)
Package weight	8.38 lbs (3.8 kg)
Number of cartons per pallet (air)	14 pc(s)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	69.9" (177.5 cm)
Compliance certificates	Low Voltage Directive (LVD), CE, UKCA, RoHS
Customs product code (TARIC)	8517620000
Country of origin	Taiwan
Master (outer) case width	21.3" (540 mm)
Master (outer) case length	19.4" (492 mm)
Master (outer) case height	12.8" (326 mm)
Master (outer) case weight	44.1 lbs (20 kg)
Quantity per master (outer) case	5 pc(s)
