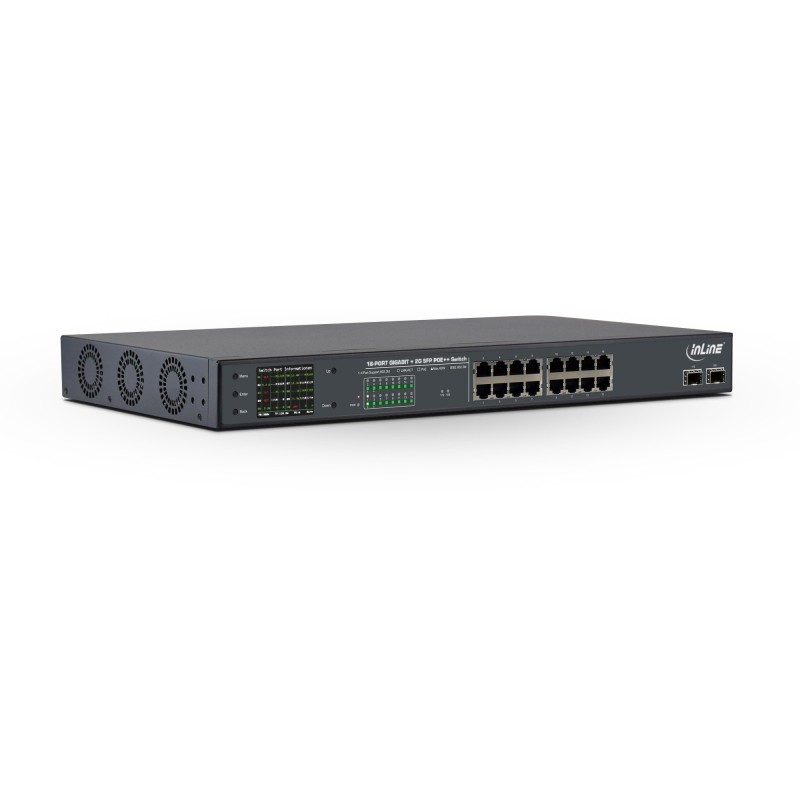

InLine 32316P, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 2 |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e, Cat6, Cat6a, Cat8.1 |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| MAC address auto-learning supported | Yes |
| Fiber ethernet cabling technology | 1000BASE-X |
| MAC address table | 8000 entries |
| Forwarding rate | 26.78 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Transmission method | Store-and-forward |
| Packet buffer memory | 4.1 MB |
| Rack mounting | Yes |
| Form factor | 1U |
| Product color | Black |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Maximum data transfer rate | 1000 Mbit/s |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 330 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 300 W |
| Dimensions (WxDxH) | 17.3 x 1.49 x 9.06" (440 x 37.8 x 230 mm) |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 16 |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 17.3" (440 mm) |
| Depth | 1.49" (37.8 mm) |
| Height | 9.06" (230 mm) |
| Weight | 9.92 lbs (4.5 kg) |
| Package width | 13.8" (350 mm) |
| Package depth | 19.7" (500 mm) |
| Package height | 3.74" (95 mm) |
| Package weight | 6.88 lbs (3.12 kg) |
