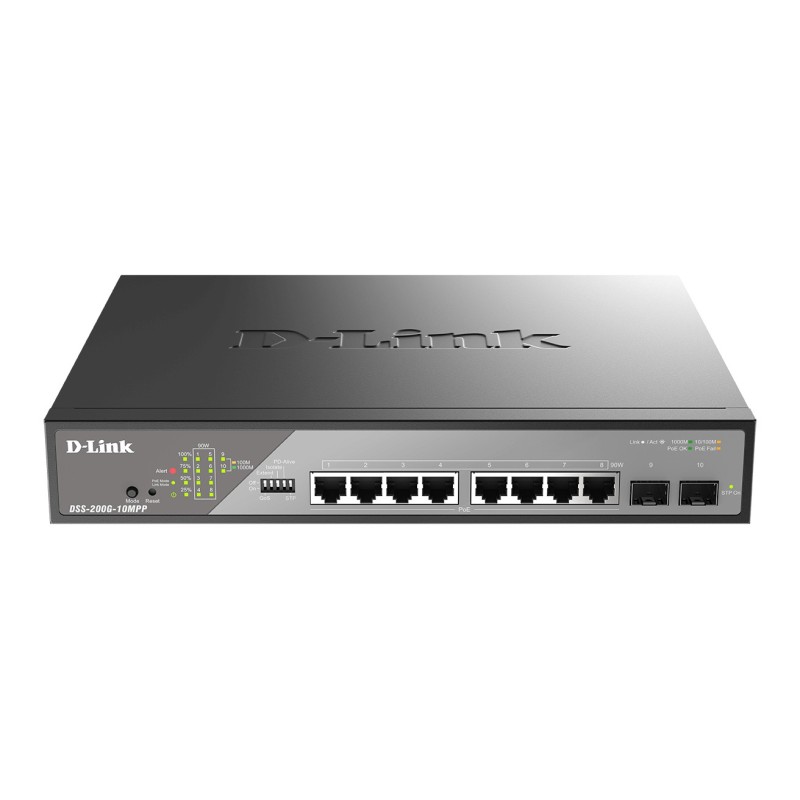

D-Link DSS-200G-10MPP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, Gray

D-Link DSS-200G-10MPP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt,.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
MIB support	• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention • RFC2233 Interface Group MIB • RFC2665 Ether-like MIB • RFC4363 IEEE 802.1p MIB • ZoneDefense MIB • Private MIB • RFC951 BootP client • RFC1542 BootP/DHCP client • RFC2236 IGMP Snooping
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	2
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
Ethernet LAN data rates	1000 Mbit/s
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN
Number of VLANs	4094
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	10240
Packet buffer memory	4.1 MB
IGMP snooping	Yes
SSH/SSL support	Yes
Password protection	Yes
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Multicast support	Yes
Multicast features	Controllable multicast
Rack mounting	Yes
Form factor	1U
Product color	Black, Gray
Reset button	Yes
LED indicators	Activity, Alarm, Link, Power, Speed
Number of fans	1 fan(s)
Memory type	DDR3-SDRAM
Internal memory	128 MB
Flash memory	32 MB
Noise level	50.6 dB
Fanless	No
Mean time between failures (MTBF)	508112 h
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	3 A
Input voltage	100 - 240 V
Power consumption (typical)	267.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	242 W
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	87 BTU/h
Width	11" (280 mm)
Depth	9.06" (230 mm)
Height	1.73" (44 mm)
Weight	4.52 lbs (2.05 kg)
Sustainability certificates	UL ECOLOGO
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), cUL
