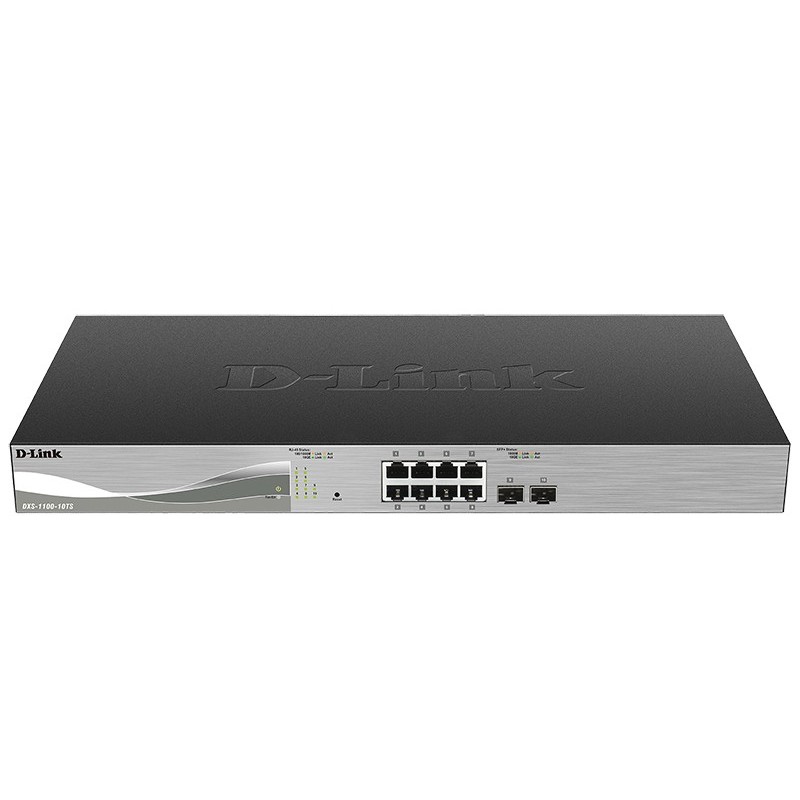

D-Link DXS-1100-10TS, Managed, L2, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting, 1U
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
| Fiber optic connector | SFP+ |
| USB 2.0 ports quantity | 0 |
| Networking standards | IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Number of VLANs | 128 |
| MAC address table | 16000 entries |
| Switching capacity | 200 Gbit/s |
| Throughput | 148.81 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| IGMP snooping | Yes |
| Security algorithms | SNMP |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Queue scheduling algorithms | SPQ, Weighted Round Robin (WRR) |
| Rack mounting | Yes |
| Form factor | 1U |
| Product color | Black |
| Number of fans | 2 fan(s) |
| Flash memory | 128 MB |
| Noise level | 46.4 dB |
| Mean time between failures (MTBF) | 585.959 h |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 50.9 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 173.57 BTU/h |
| Width | 17.4" (441 mm) |
| Depth | 8.27" (210 mm) |
| Height | 1.73" (44 mm) |
| Weight | 5.93 lbs (2.69 kg) |
| Package width | 13.7" (348 mm) |
| Package depth | 20.1" (511 mm) |
| Package height | 3.58" (91 mm) |
| Package weight | 9.13 lbs (4.14 kg) |
| Shipping (inner) case height | 15.1" (38.3 cm) |
| Shipping (inner) case width | 11.7" (29.6 cm) |
| Shipping (inner) case length | 20.8" (52.9 cm) |
| Shipping (inner) case net weight | 21.3 lbs (9.67 kg) |
| Quantity per shipping (inner) case | 3 pc(s) |
| Pallet gross weight (air) | 1217.8 lbs (552.4 kg) |
| Number of cartons per pallet (air) | 40 pc(s) |
| Quantity per pallet (air) | 120 pc(s) |
| Pallet length | 43.3" (110 cm) |
| Pallet width | 47.2" (120 cm) |
| Pallet height (air) | 80.7" (2.05 m) |
| Pallet gross weight (sea) | 1217.8 lbs (552.4 kg) |
| Number of cartons per pallet (sea) | 40 pc(s) |
| Quantity per pallet (sea) | 120 pc(s) |
| Pallet height (sea) | 80.7" (2.05 m) |
| Shipping (inner) case weight | 29.3 lbs (13.3 kg) |
| Harmonized System (HS) code | 85176990 |
