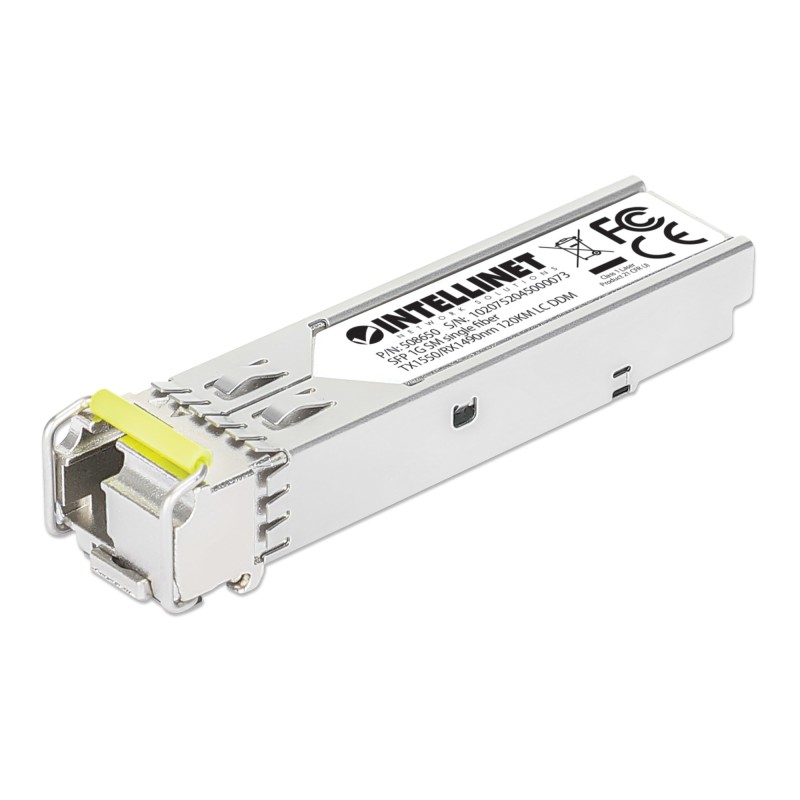

Intellinet 508650 network transceiver module Fiber optic 1000 Mbit/s mini-GBIC/SFP

Intellinet 508650. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: mini-GBIC/SFP. Product color: Silver, Housing material: Metal, Brand compatibility: MSA Compliant. Maximum voltage: 3.3 V, Power consumption (typical): 1 W. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC). Width: 0.551" (14 mm), Depth: 2.24" (57 mm), Height: 0.472" (12 mm)

SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	mini-GBIC/SFP
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	BX-D
Maximum transfer distance	4724409.4" (120000 m)
Tx wavelength (max)	1550 nm
Rx wavelength (max)	1490 nm
Tx power (min)	0 dBmW
Tx power (max)	5 dBmW
Networking standards	IEEE 802.3z
Fiber ethernet cabling technology	1000BASE
Digital Diagnostics Monitoring (DDM)	Yes
Wavelength-division multiplexing (WDM)	Yes
Product color	Silver
Housing material	Metal
Hot-Plug support	Yes
Brand compatibility	MSA Compliant
Maximum voltage	3.3 V
Power consumption (typical)	1 W
Compliance certificates	CE, RoHS, Federal Communications Commission (FCC)
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 85%
Width	0.551" (14 mm)
Depth	2.24" (57 mm)
Height	0.472" (12 mm)
Weight	0.705 oz (20 g)
Quantity per pack	1 pc(s)
Package weight	1.06 oz (30 g)
Package type	Box
Master (outer) case width	7.87" (200 mm)
Master (outer) case length	12.2" (310 mm)
Master (outer) case height	9.84" (250 mm)
Master (outer) case weight	5.73 lbs (2.6 kg)
Quantity per master (outer) case	48 pc(s)
Sustainability compliance	Yes
