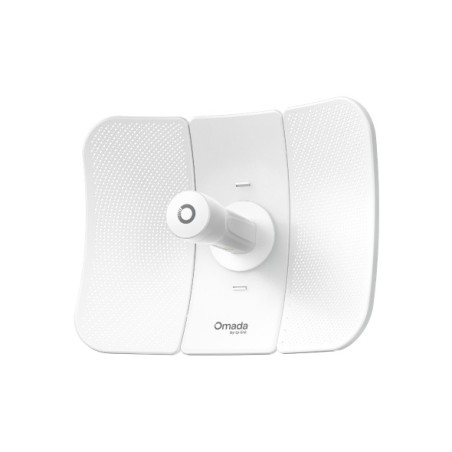

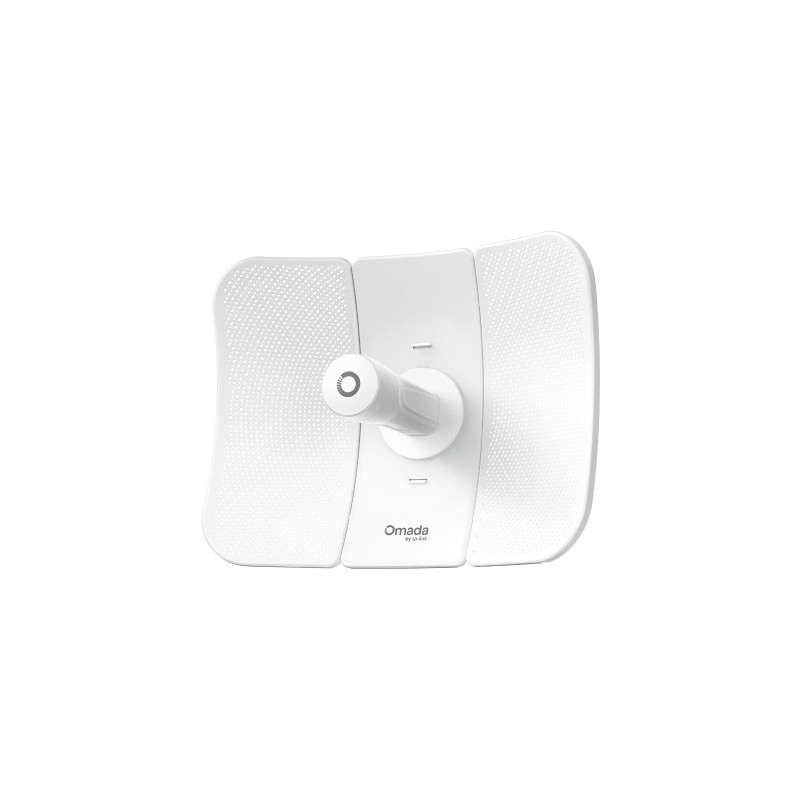

TP-Link Beam Bridge 5 UR KIT Network bridge 867 Mbit/s White

TP-Link Beam Bridge 5 UR KIT. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 590551.2" (15000 m). Antenna design: External, Antenna type: 2x2, Antenna gain level (max): 23 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 5.150 - 5.850 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at,.... Security algorithms: EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2,...

Maximum data transfer rate	867 Mbit/s
Maximum transfer distance	590551.2" (15000 m)
Antenna design	External
Antenna type	2x2
Antenna gain level (max)	23 dBi
Wi-Fi	Yes
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Frequency band	5.150 - 5.850 GHz
Signal strength	27 dBm
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, OFDM, QPSK
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Ethernet LAN (RJ-45) ports	1
Security algorithms	EAP-AKA, EAP-FAST, EAP-GTC, EAP-MD5, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, SNMP, SNMPv2, SNMPv3, SSID, WPA2
Web-based management	Yes
DHCP client	Yes
Product type	Network bridge
Mounting type	Pole
Product color	White
LED indicators	Yes
Reset button	Yes
International Protection (IP) code	IP65
Surge protection	Yes
Network Time Protocol (NTP) client	Yes
Internal memory	128 MB
Mean time between failures (MTBF)	360000 h
Power source type	PoE
Power consumption (typical)	15.8 W
Power consumption (max)	15.8 W
Power over Ethernet (PoE)	Yes
Operating temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-40 - 158 °F
Operating relative humidity (H-H)	10 - 90%
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Compliance certificates	Federal Communications Commission (FCC)
Certification	ETSI EN 300 328, ETSI EN 301 893, EN 55032, EN 55035, EN 301489-1, EN 301489-17, EN 62368-1, IEC 62368-1
Width	14.4" (366 mm)
Depth	11" (280 mm)
Height	8.15" (207 mm)
Weight	2.43 lbs (1.1 kg)
Packaging content	• Beam Bridge 5 UR KIT • Installation Guide • Mounting Kit • Passive PoE Adapter • Power Cord
Package width	15.4" (390 mm)
Package depth	11.7" (296 mm)
Package height	6.5" (165 mm)
Package weight	8.25 lbs (3.74 kg)
Package type	Box
