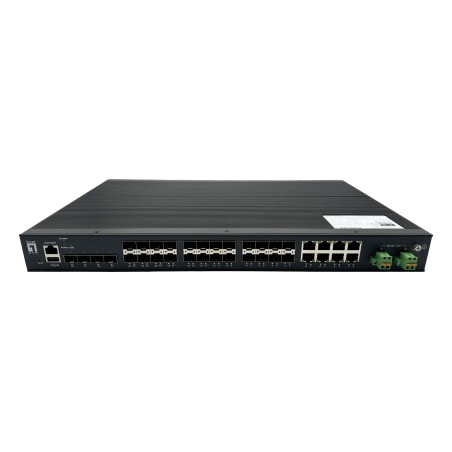

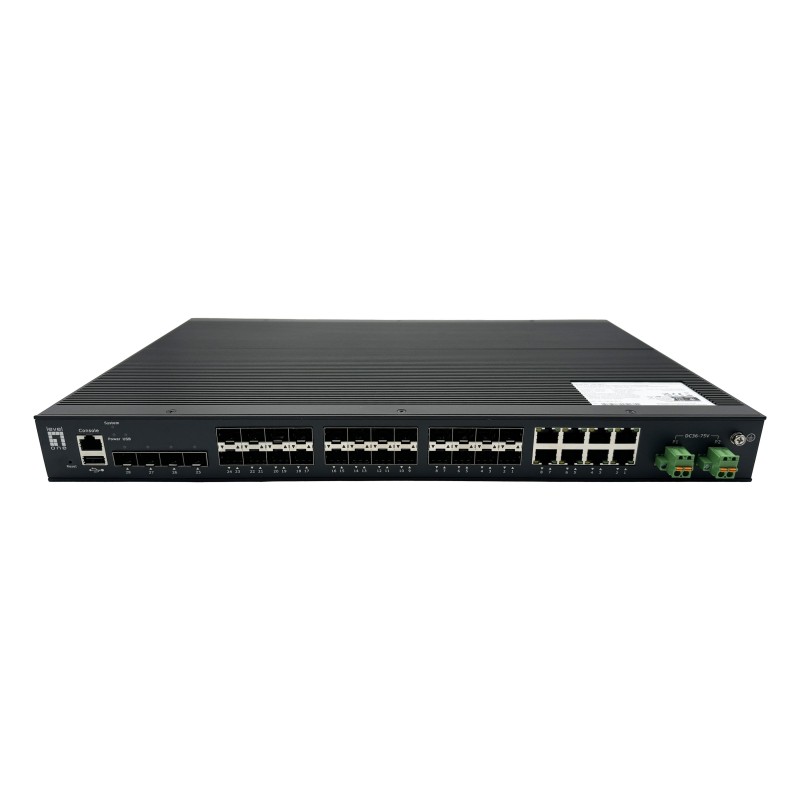

LevelOne IGU-2872, Managed, L2+, Rack mounting
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 8 |
| SFP module slots quantity | 20 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-X, 1000BASE-T |
| Port mirroring | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping |
| MAC address table | 16000 entries |
| Switching capacity | 68 Gbit/s |
| Forwarding rate | 101.1 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
| Access Control List (ACL) | Yes |
| Security algorithms | HTTPS, SSH |
| MAC address filtering | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Packet filtering | Y |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| IP Source Guard (IPSG) | Yes |
| Rack mounting | Yes |
| Product color | Black |
| LED indicators | Power, System, USB |
| International Protection (IP) code | IP40 |
| Fanless | Yes |
| Mean time between failures (MTBF) | 200000 h |
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| DC input voltage | 36 - 75 V |
| Power consumption (max) | 36 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 17.3" (440 mm) |
| Depth | 1.77" (45 mm) |
| Height | 11" (280 mm) |
| Weight | 9.13 lbs (4.14 kg) |
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Terminal block included | Yes |
| Package width | 20.7" (525 mm) |
| Package depth | 15.4" (390 mm) |
| Package height | 3.74" (95 mm) |
| Package weight | 11.7 lbs (5.29 kg) |
| Number of cartons per pallet (air) | 14 pc(s) |
| Pallet length | 31.5" (80 cm) |
| Pallet width | 47.2" (120 cm) |
| Pallet height (air) | 69.9" (177.6 cm) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Country of origin | China |
| Master (outer) case width | 21.1" (535 mm) |
| Master (outer) case length | 15.7" (400 mm) |
| Master (outer) case height | 16.1" (408 mm) |
| Harmonized System (HS) code | 851762 |
| Master (outer) case weight | 49.6 lbs (22.5 kg) |
| Quantity per master (outer) case | 4 pc(s) |
| Port trunking | Yes |
