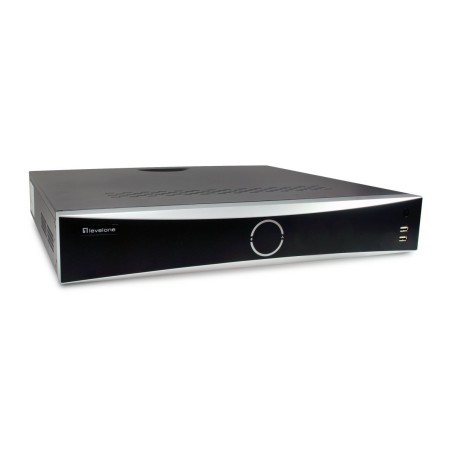

LevelOne NVR-0411 network video recorder Black, Gray

LevelOne NVR-0411. Video input channels: 32 channels, Maximum resolution: 4096 x 2160 pixels, Number of simultaneously playbacked channels: 256 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Product color: Black, Gray. Power consumption (max): 200 W, Power consumption (typical): 20 W, Power over Ethernet (PoE) power per port: 16 W. Browser supported: IE11, Chrome V57, Firefox V52, Safari V12, Edge V889

Video input channels	32 channels
Maximum resolution	4096 x 2160 pixels
Number of simultaneously playbacked channels	256 channels
Supported resolutions	2MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QC
Video motion detection	Yes
Video formats supported	H.264, H.264+, H.265, H.265+
Maximum frame rate	30 fps
Input bandwidth	256 Mbit/s
Output bandwidth	160 Mbit/s
Wi-Fi	No
Number of HDDs installed	0
Maximum storage capacity	10 TB
HDD interface	SATA
Number of HDDs supported	4
RAID support	No
Ethernet LAN (RJ-45) ports	17
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	16
HDMI output	Yes
HDMI ports quantity	1
VGA (D-Sub) output ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio RCA inputs	1
Audio RCA outputs	1
eSATA ports quantity	1
RS-485 ports	1
RS-232 interface	Yes
eSATA	Yes
RS-232 ports	1
Rack mounting	Yes
LED indicators	Yes
On/off switch	Yes
Product color	Black, Gray
Power consumption (max)	200 W
Power consumption (typical)	20 W
Power over Ethernet (PoE) power per port	16 W
Browser supported	IE11, Chrome V57, Firefox V52, Safari V12, Edge V889
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95%
Compliance certificates	BIS, CB, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, RCM, REACH, RoHS, UKCA, UL, WEEE
Width	17.5" (445 mm)
Depth	15.7" (400 mm)
Height	2.95" (75 mm)
Weight	11 lbs (5 kg)
Package type	Box
Cables included	AC, SATA
Quick installation guide	Yes
