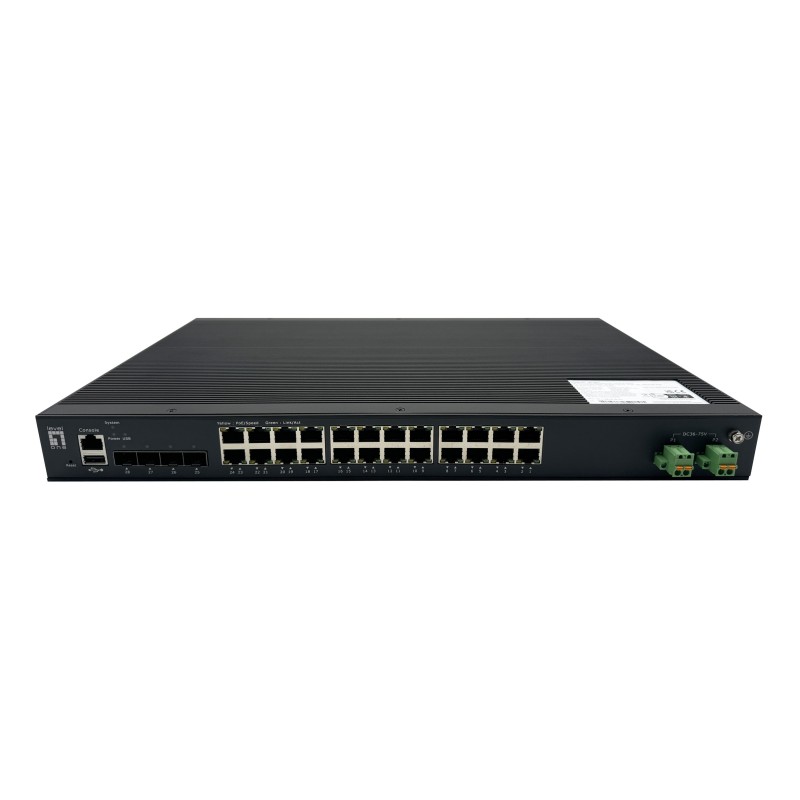

LevelOne IXP-2871 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

LevelOne IXP-2871. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
SFP+ module slots quantity	4
USB Type-A ports quantity	1
Console port	RJ-45
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Cable length detection	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
VLAN support	Yes
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	190.4 Mpps
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	16000
Packet buffer memory	12 MB
DHCP features	DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS
MAC address filtering	Yes
SSH/SSL support	Yes
Loop protection	Yes
IP-MAC-Port binding	Yes
Password protection	Yes
Authentication type	IEEE 802.1x
MAC address entries	Dynamic MAC address entries, Static MAC address entries
Multicast support	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Rack mounting	Yes
Product color	Black
LED indicators	Fault, PoE, Power, Status, USB
International Protection (IP) code	IP40
Telnet	Yes
Dying Gasp	Yes
Fanless	Yes
Mean time between failures (MTBF)	200000 h
Power source	DC/PoE
Redundant power supply (RPS) support	Yes
Power consumption (typical)	32 W
Power consumption (max)	402 W
Surge protection	Yes
Surge protection voltage	6 kV
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	370 W
Terminal block port	Yes
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	17.3" (440 mm)
Depth	11" (280 mm)
Height	1.77" (45 mm)
Weight	9.13 lbs (4.14 kg)
Cables included	LAN (RJ-45) to DB9
Quick start guide	Yes
Rack mount kit	Yes
Terminal block included	Yes
Package width	20.7" (525 mm)
Package depth	15.4" (390 mm)
Package height	3.74" (95 mm)
Package weight	10.6 lbs (4.8 kg)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Compliance certificates	UKCA, Federal Communications Commission (FCC), RoHS, CE
Pallet height	69.9" (177.6 cm)
Country of origin	China
Master (outer) case width	21.1" (535 mm)
Master (outer) case length	8.07" (205 mm)
Master (outer) case height	16.1" (408 mm)
Harmonized System (HS) code	851762
Master (outer) case weight	23.4 lbs (10.6 kg)
Quantity per master (outer) case	2 pc(s)
Port trunking	Yes
