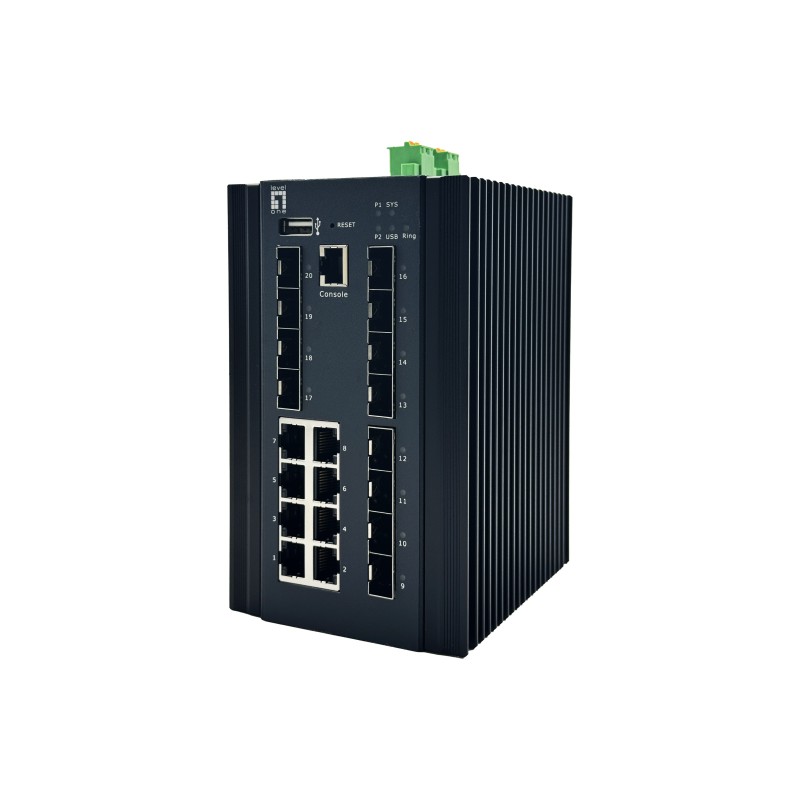

LevelOne IGU-2072 network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black

LevelOne IGU-2072. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE...

Switch type	Managed
Switch layer	L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
SFP module slots quantity	8
SFP+ module slots quantity	4
USB Type-A ports quantity	1
Console port	RJ-45
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Port mirroring	Yes
Flow control support	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Cable length detection	Yes
Ethernet Ring Protection Switching (ERPS)	Yes
VLAN support	Yes
Virtual LAN features	IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Stacked VLAN, VLAN mapping
MAC address table	16000 entries
Switching capacity	52 Gbit/s
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	12 MB
DHCP features	DHCP server
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS
MAC address filtering	Yes
Loop protection	Yes
IP-MAC-Port binding	Yes
Password protection	Yes
Authentication type	IEEE 802.1x
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
Multicast support	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
IP Source Guard (IPSG)	Yes
Stackable	No
Product color	Black
LED indicators	Power, Ring, System, USB
International Protection (IP) code	IP40
DIN rail mounting	Yes
Firmware upgradeable	Yes
Telnet	Yes
Dying Gasp	Yes
Fanless	Yes
Mean time between failures (MTBF)	200000 h
Power source	DC
Redundant power supply (RPS) support	Yes
Input voltage	12 - 75 V
Power consumption (max)	25 W
Surge protection	Yes
Surge protection voltage	6 kV
Power over Ethernet (PoE)	No
Terminal block port	Yes
Operating temperature (T-T)	-40 - 80 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Width	4.33" (110 mm)
Depth	4.53" (115 mm)
Height	6.22" (158 mm)
Weight	3.95 lbs (1.79 kg)
Cables included	LAN (RJ-45) to DB9
Quick start guide	Yes
Terminal block included	Yes
DIN rail included	Yes
Package width	9.13" (232 mm)
Package depth	7.09" (180 mm)
Package height	5.43" (138 mm)
Package weight	4.67 lbs (2.12 kg)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Compliance certificates	UKCA, Federal Communications Commission (FCC), RoHS, CE
Pallet height	65.9" (167.4 cm)
Country of origin	China
Master (outer) case width	17.3" (440 mm)
Master (outer) case length	14.8" (375 mm)
Master (outer) case height	10" (255 mm)
Harmonized System (HS) code	851762
Master (outer) case weight	33.1 lbs (15 kg)
Quantity per master (outer) case	6 pc(s)
