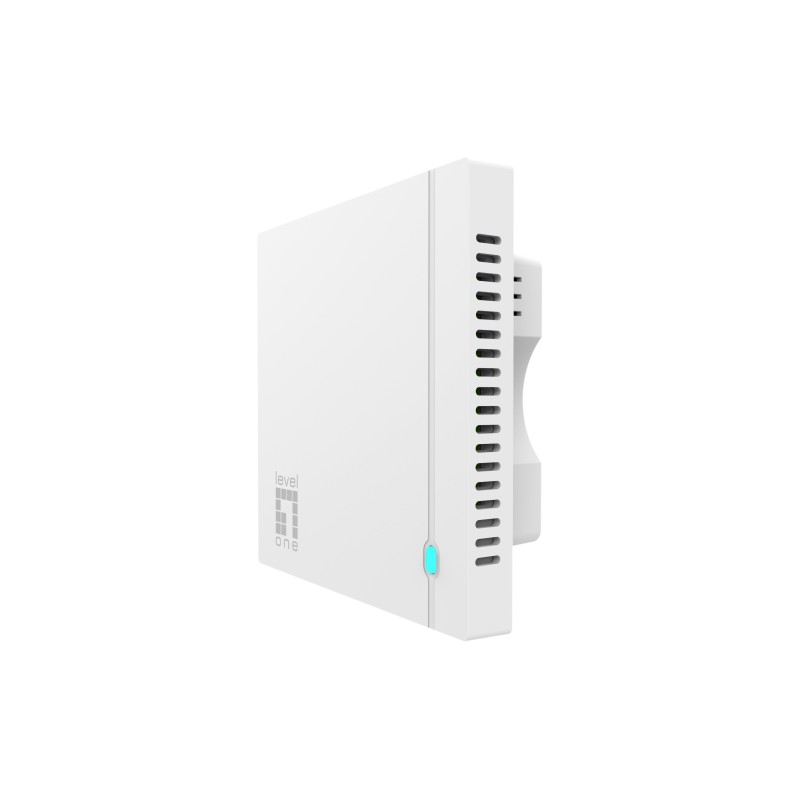

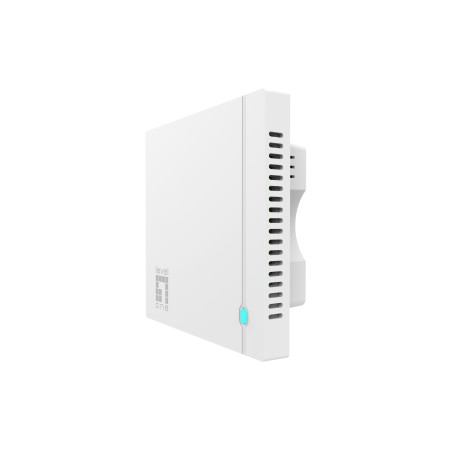

LevelOne WAP-8231, 2.4 GHz, 5 GHz, 1800 Mbit/s, WPA2-AES, WPA3, 10,100,1000 Mbit/s
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.412 -2.484, 5.18 - 5.825 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Channels quantity | 165 channels |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Operating modes | AP Mode |
| Security algorithms | WPA2-AES, WPA3 |
| Number of SSID supported | 8 |
| Web-based management | Yes |
| USB 2.0 ports quantity | 0 |
| USB connector type | USB Type-C |
| WAN connection | Ethernet (RJ-45) |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 14 W |
| Placement | In-wall |
| Product color | White |
| LED indicators | Wi-Fi |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 3 dBi |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
| Number of cartons per pallet (air) | 10 pc(s) |
| Pallet length | 31.5" (80 cm) |
| Pallet width | 47.2" (120 cm) |
| Pallet height (air) | 74.4" (189 cm) |
| Compliance certificates | CE, RoHS, UKCA |
| Width | 3.43" (87 mm) |
| Depth | 3.39" (86 mm) |
| Height | 1.24" (31.5 mm) |
| Weight | 4.87 oz (138 g) |
| Package width | 4.72" (120 mm) |
| Package depth | 4.33" (110 mm) |
| Package height | 2.56" (65 mm) |
| Package weight | 8.47 oz (240 g) |
| Package type | Box |
| Mounting kit | Yes |
| Interface adapter included | USB Type-C male - RJ-45 female |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Country of origin | China |
| Master (outer) case width | 20.3" (515 mm) |
| Master (outer) case length | 13.7" (348 mm) |
| Master (outer) case height | 22.8" (580 mm) |
| Master (outer) case weight | 55.1 lbs (25 kg) |
| Quantity per master (outer) case | 100 pc(s) |
| Sustainability compliance | Yes |
