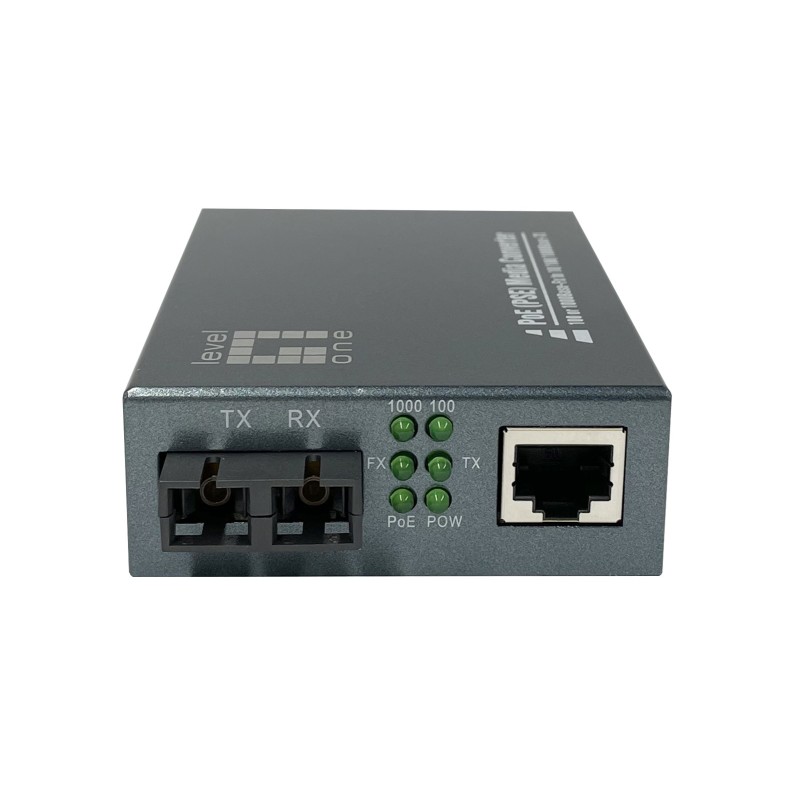

LevelOne GVT-2014 network media converter 1000 Mbit/s 1310 nm Single-mode Gray

LevelOne GVT-2014. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum transfer distance: 787401.6" (20000 m), Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Product color: Gray. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 1.6 A

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Jumbo frames support	Yes
Jumbo frames	9000
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Store-and-forward	Yes
Duplex system	Full, Half
Maximum transfer distance	787401.6" (20000 m)
Wavelength	1310 nm
Fiber mode structure	Single-mode
Internal	No
LED indicators	Activity, Link, Power
Product color	Gray
Fiber optic connector	SC
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.6 A
Output voltage	48 V
Output current	2 A
Power consumption (max)	40 W
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	30 W
External power adapter	Yes
Width	2.76" (70 mm)
Depth	3.7" (94 mm)
Height	1.02" (26 mm)
Weight	7.05 oz (200 g)
Operating temperature (T-T)	10 - 60 °C
Operating relative humidity (H-H)	5 - 90%
AC adapter included	Yes
User guide	Yes
Package width	9.06" (230 mm)
Package depth	5.91" (150 mm)
Package height	2.36" (60 mm)
Package weight	22.9 oz (650 g)
Country of origin	China
Number of cartons per pallet (air)	23 pc(s)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	69.6" (176.9 cm)
Master (outer) case width	18.9" (480 mm)
Master (outer) case length	12" (305 mm)
Master (outer) case height	12.8" (325 mm)
Master (outer) case weight	30.4 lbs (13.8 kg)
Quantity per master (outer) case	20 pc(s)
