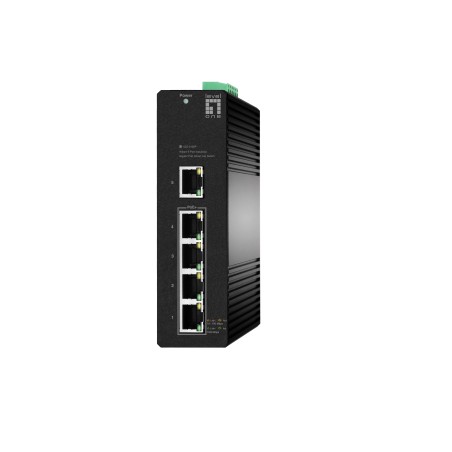

LevelOne IGS-2105P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

LevelOne IGS-2105P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE.... DC input voltage: 44 - 57 V. Power over Ethernet (PoE)

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5
Uplink ports quantity	1
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN
Number of VLANs	32
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	1.5 MB
IGMP snooping	Yes
Queue scheduling algorithms	Priority queuing (PQ)
Multicast support	Yes
LED indicators	Activity, Link, Power
Redundant fans support	Yes
International Protection (IP) code	IP30
DIN rail mounting	Yes
Flash memory	2 MB
Noise level	0 dB
Fanless	Yes
Mean time between failures (MTBF)	43800 h
Power source	DC/PoE
Power supply included	No
Redundant power supply (RPS) support	Yes
DC input voltage	44 - 57 V
Power consumption (typical)	68 W
Surge protection	Yes
Surge protection voltage	4 kV
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Total Power over Ethernet (PoE) budget	60 W
Operating temperature (T-T)	-40 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	23.88 BTU/h
Width	5.35" (136 mm)
Depth	4.25" (108 mm)
Height	1.52" (38.5 mm)
Weight	15.9 oz (450 g)
Quick start guide	Yes
Terminal block included	Yes
Package type	Box
DIN rail included	Yes
Package width	7.52" (191 mm)
Package depth	5.31" (135 mm)
Package height	2.36" (60 mm)
Package weight	24 oz (680 g)
Number of layers per pallet (air)	16 pc(s)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, UKCA
Pallet height	60.8" (154.4 cm)
Country of origin	China
Master (outer) case width	18.9" (480 mm)
Master (outer) case length	15.6" (395 mm)
Master (outer) case height	13.8" (350 mm)
Harmonized System (HS) code	8517620090
Master (outer) case weight	52.9 lbs (24 kg)
Quantity per master (outer) case	34 pc(s)
Sustainability compliance	Yes
