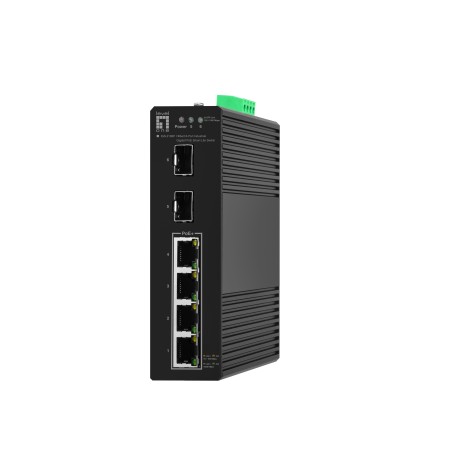

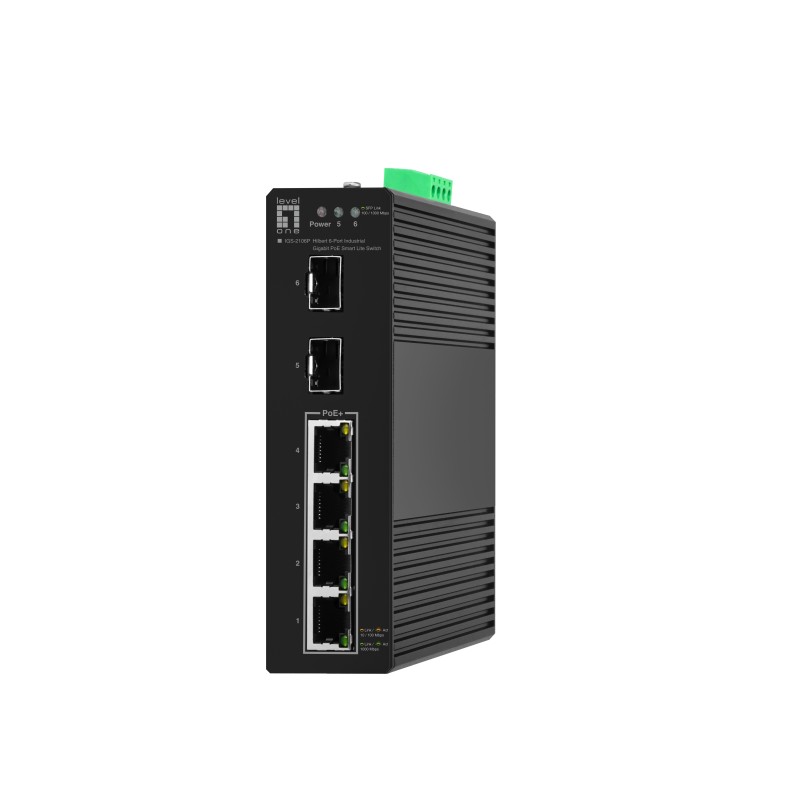

LevelOne IGS-2106P, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| SFP module slots quantity | 2 |
| Fiber uplink ports quantity | 2 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| MAC address table | 2000 entries |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Priority queuing (PQ) |
| Multicast support | Yes |
| Product color | Black |
| LED indicators | Activity, Link, Power |
| Redundant fans support | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Flash memory | 2 MB |
| Noise level | 0 dB |
| Fanless | Yes |
| Mean time between failures (MTBF) | 43800 h |
| Power source | DC/PoE |
| Power supply included | No |
| Redundant power supply (RPS) support | Yes |
| DC input voltage | 44 - 57 V |
| Power consumption (typical) | 68 W |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
| Power protection features | Surge protection |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 68 W |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 27.3 BTU/h |
| Width | 5.35" (136 mm) |
| Depth | 4.25" (108 mm) |
| Height | 1.52" (38.5 mm) |
| Weight | 15.9 oz (450 g) |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Package type | Box |
| DIN rail included | Yes |
| Package width | 7.52" (191 mm) |
| Package depth | 5.31" (135 mm) |
| Package height | 2.36" (60 mm) |
| Package weight | 24 oz (680 g) |
| Number of layers per pallet (air) | 16 pc(s) |
| Pallet length | 31.5" (80 cm) |
| Pallet width | 47.2" (120 cm) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Pallet height | 60.8" (154.4 cm) |
| Country of origin | China |
| Master (outer) case width | 18.9" (480 mm) |
| Master (outer) case length | 15.6" (395 mm) |
| Master (outer) case height | 13.8" (350 mm) |
| Harmonized System (HS) code | 8517620090 |
| Master (outer) case weight | 52.9 lbs (24 kg) |
| Quantity per master (outer) case | 34 pc(s) |
| Sustainability compliance | Yes |
