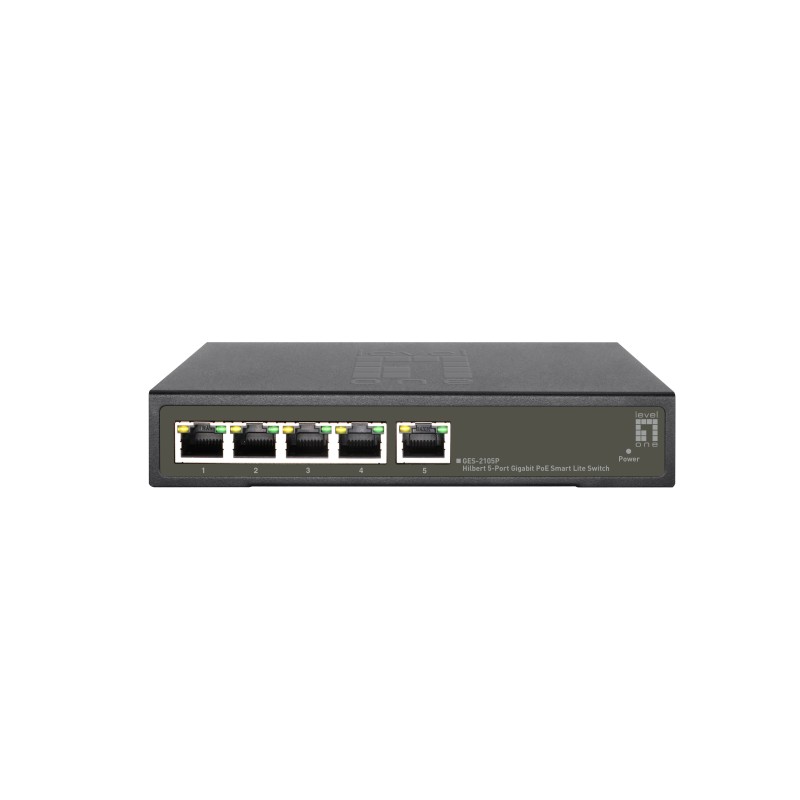

LevelOne GES-2105P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

LevelOne GES-2105P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE)

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Number of VLANs	32
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	1.5 MB
IGMP snooping	Yes
Multicast support	Yes
Product color	Black
LED indicators	Yes
Flash memory	2 MB
Noise level	0 dB
Mean time between failures (MTBF)	43800 h
Power source	DC/PoE
Power supply included	Yes
Input current	1.2 A
Input voltage	54 V
Power consumption (max)	65 W
Surge protection	Yes
Surge protection voltage	8 kV
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	60 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	23.88 BTU/h
Width	6.3" (160 mm)
Depth	3.74" (95 mm)
Height	1.14" (29 mm)
Weight	14.1 oz (400 g)
Cables included	AC
Quick start guide	Yes
AC adapter included	Yes
Package type	Box
Package width	12.2" (310 mm)
Package depth	9.06" (230 mm)
Package height	2.56" (65 mm)
Package weight	32.5 oz (920 g)
Number of cartons per pallet (air)	18 pc(s)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	62.4" (158.4 cm)
Compliance certificates	CE, RoHS
Certification	UKCA, FCC Class A
Master (outer) case net weight	21.2 oz (600 g)
Country of origin	China
Master (outer) case width	13.8" (350 mm)
Master (outer) case length	13" (330 mm)
Master (outer) case height	18.9" (480 mm)
Master (outer) case weight	21.6 lbs (9.8 kg)
Quantity per master (outer) case	10 pc(s)
Sustainability compliance	Yes
