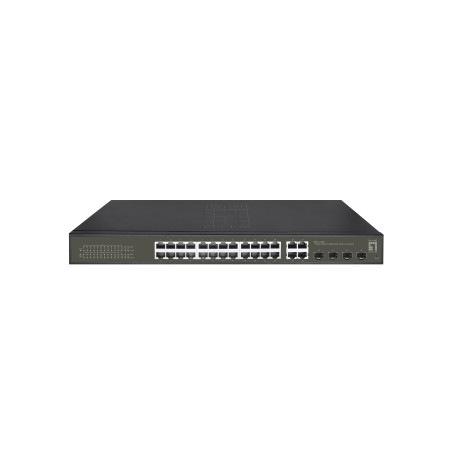

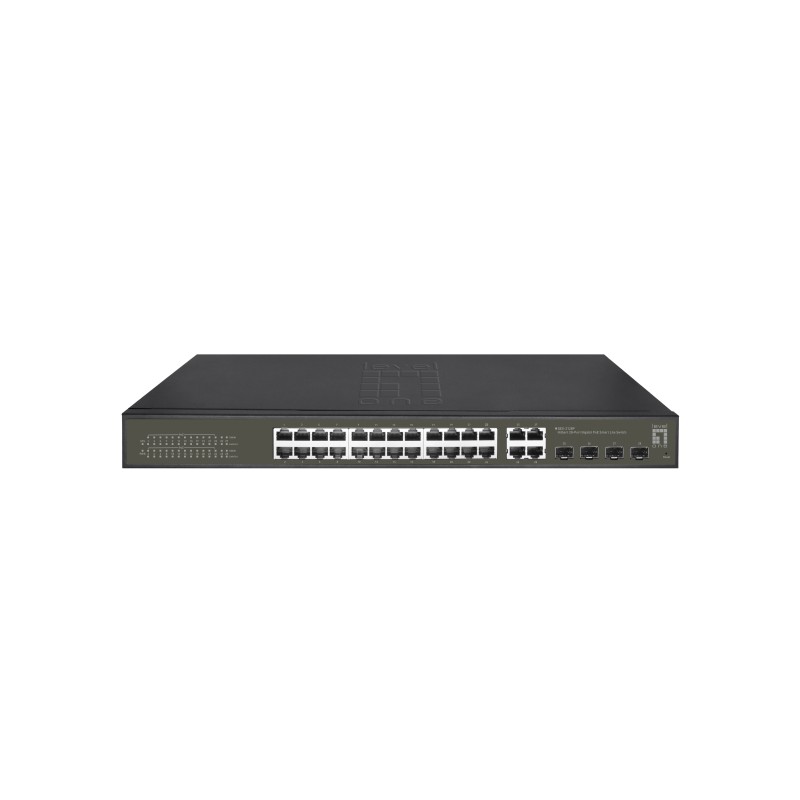

LevelOne GES-2128P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

LevelOne GES-2128P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Rack mounting

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
Combo SFP ports quantity	4
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN
Number of VLANs	32
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
IGMP snooping	Yes
Multicast support	Yes
Rack mounting	Yes
Product color	Black
LED indicators	Activity, Link, PoE, Power, System
Flash memory	2 MB
Noise level	30 dB
Fanless	No
Mean time between failures (MTBF)	43800 h
Power source	AC/PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	400 W
Surge protection	Yes
Surge protection voltage	8 kV
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	380 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Heat dissipation	88.71 BTU/h
Width	17.3" (440 mm)
Depth	11.4" (290 mm)
Height	1.75" (44.5 mm)
Weight	7.5 lbs (3.4 kg)
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes
Package type	Box
Package width	20.3" (515 mm)
Package depth	15" (380 mm)
Package height	3.66" (93 mm)
Package weight	9.04 lbs (4.1 kg)
Number of cartons per pallet (air)	16 pc(s)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	68.7" (174.4 cm)
Compliance certificates	CE, RoHS
Certification	UKCA, FCC Class A
Master (outer) case net weight	26.5 oz (750 g)
Country of origin	China
Master (outer) case width	21.3" (540 mm)
Master (outer) case length	12.6" (320 mm)
Master (outer) case height	15.7" (400 mm)
Master (outer) case weight	28.9 lbs (13.1 kg)
Quantity per master (outer) case	3 pc(s)
