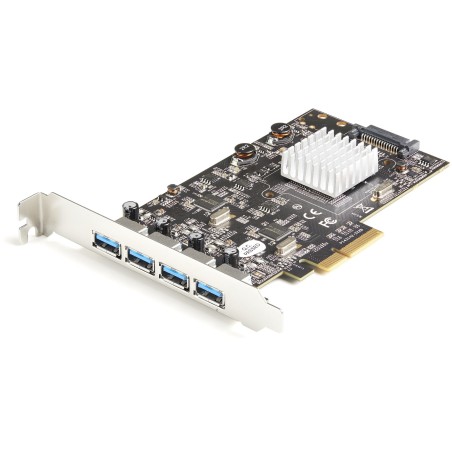

StarTech.com PEXUSB314A2V2 interface cards/adapter Internal USB 3.2 Gen 2 (3.1 Gen 2)

StarTech.com PEXUSB314A2V2. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Product color: Black, Metallic, Mean time between failures (MTBF): 40000 h. Chipset: ASMedia - ASM3142, ASMedia - ASM1812, Data transfer rate (max): 10 Gbit/s. Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur,..., Server operating systems supported: Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Host interface	PCIe
Output interface	USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard	PCIe 3.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Internal SATA ports quantity	1
SATA power connector type	SATA 15-pin
Internal	Yes
Product color	Black, Metallic
Mean time between failures (MTBF)	40000 h
Chipset	ASMedia - ASM3142, ASMedia - ASM1812
Data transfer rate (max)	10 Gbit/s
UASP support	Yes
Output voltage	5 V
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Compliance certificates	CE, RoHS
Width	5.91" (150 mm)
Depth	4.72" (120 mm)
Height	0.748" (19 mm)
Weight	4.41 oz (125 g)
Mounting brackets included	Yes
Quick installation guide	Yes
Package width	8.15" (207 mm)
Package depth	5.67" (144 mm)
Package height	1.5" (38 mm)
Package weight	6.35 oz (180 g)
Harmonized System (HS) code	84733020
Quantity per master (outer) case	20 pc(s)
Master (outer) case width	17.3" (440 mm)
Master (outer) case length	16.5" (420 mm)
Master (outer) case height	12.6" (320 mm)
Sustainability compliance	Yes
