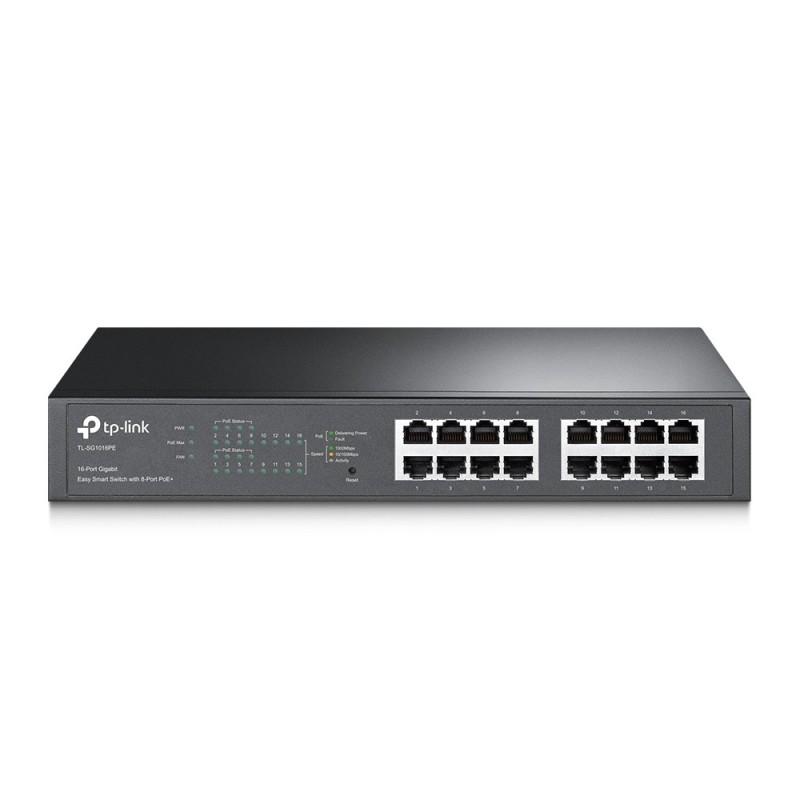

TP-Link TL-SG1016PE Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TP-Link TL-SG1016PE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	16
Power connector	AC-in jack
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN
Number of VLANs	4000
MAC address table	8000 entries
Switching capacity	32 Gbit/s
Forwarding rate	23.8 Mpps
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB
IGMP snooping	Yes
Rack mounting	Yes
Stackable	No
Form factor	1U
Product color	Black
Housing material	Metal
LED indicators	Yes
Number of fans	1 fan(s)
Compatible operating systems	Windows
Maximum cable length	3937" (100 m)
Power source	AC/PoE
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	124.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	110 W
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	11.6" (294 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Cables included	AC
User guide	Yes
Rack mount kit	Yes
Package type	Box
Resource CD	Yes
Package width	9.84" (250 mm)
Package depth	15.7" (400 mm)
Package height	3.15" (80 mm)
Package weight	5.03 lbs (2.28 kg)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance	Yes
