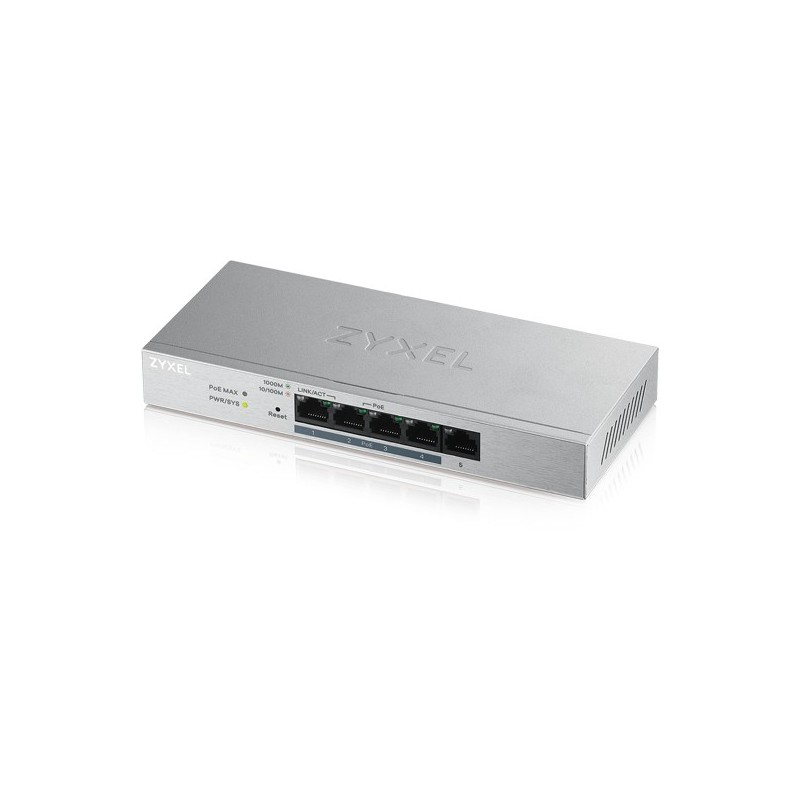

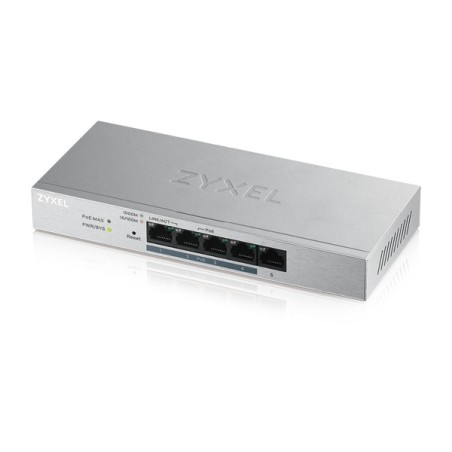

Zyxel GS1200-5HP v2. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x,.... Power over Ethernet (PoE)
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.1 MB |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 20 |
| Rack mounting | No |
| Stackable | No |
| Product color | Gray |
| Reset button | Yes |
| LED indicators | Link, PoE, Power |
| On/off switch | Yes |
| Safety | LVD EN60950-1 |
| Firmware upgradeable | Yes |
| Output current | 1.3 A |
| Power consumption (max) | 72 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 5 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Width | 7.6" (193 mm) |
| Depth | 3.31" (84 mm) |
| Height | 1.02" (26 mm) |
| Weight | 13.8 oz (392 g) |
| Package type | Box |
| Package width | 8.27" (210 mm) |
| Package depth | 5.2" (132 mm) |
| Package height | 3.07" (78 mm) |
| Package weight | 33.5 oz (950 g) |
| Certification | CE, FCC, C-Tick, Class A |
| Harmonized System (HS) code | 85176990 |
