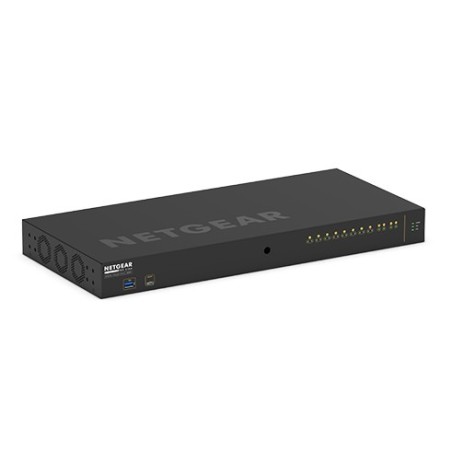

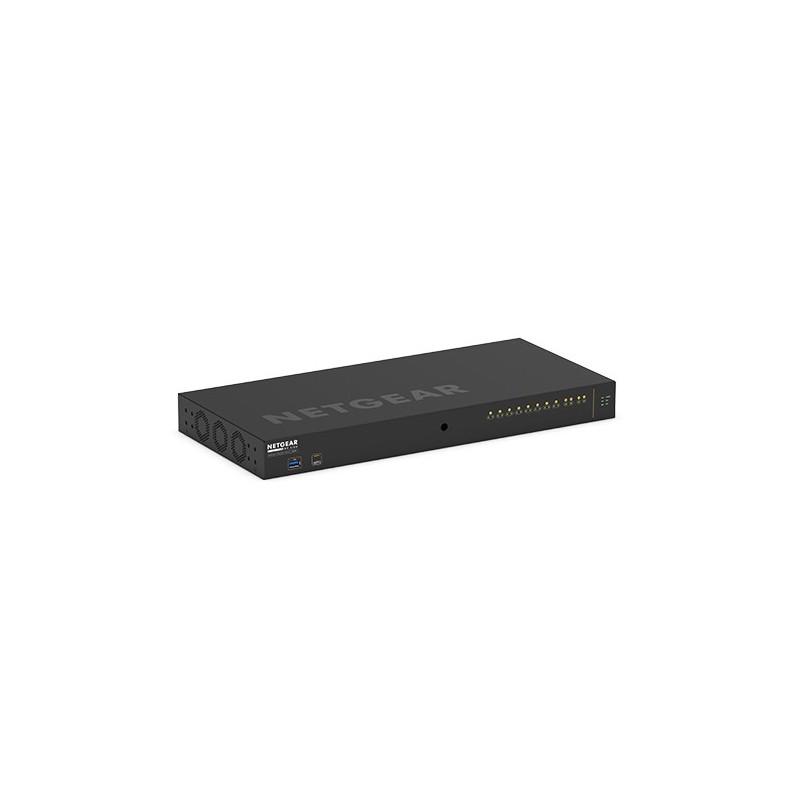

NETGEAR M4250-10G2XF-PoE+ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

NETGEAR M4250-10G2XF-PoE+. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 16000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	2
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G support	No
Full duplex	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4093
MAC address table	16000 entries
Switching capacity	60 Gbit/s
Throughput	44.64 Mpps
Store-and-forward	Yes
Latency (1 Gbps)	2.14 µs
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	16 MB
DHCP features	DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication
Authentication type	RADIUS
Multicast support	Yes
IPv4 multicast entries	2000
IPv6 multicast entries	2000
Rack mounting	Yes
Form factor	1U
Product color	Black
LED indicators	PoE, Power, Status
Built-in processor	Yes
Processor model	ARM Cortex-A9
Processor frequency	1250 MHz
Internal memory	2048 MB
Noise level	39.22 dB
Mean time between failures (MTBF)	947871 h
Power consumption (typical)	306.4 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	240 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Heat dissipation	1046.05 BTU/h
Width	17.3" (440 mm)
Depth	7.87" (200 mm)
Height	1.7" (43.2 mm)
Weight	6.53 lbs (2.96 kg)
Harmonized System (HS) code	85176990
