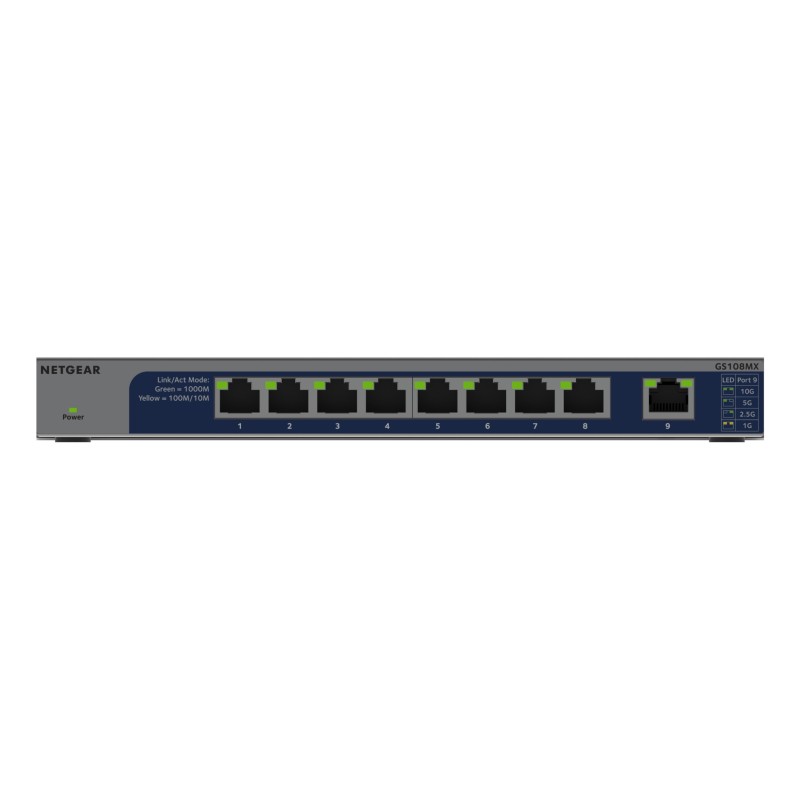

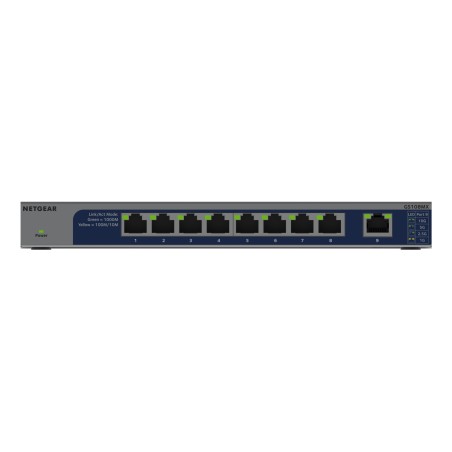

NETGEAR GS108MX-100EUS network switch Unmanaged L2 Gigabit Ethernet (10 100 1000) Desktop Wall-Mounting
  • NETGEAR GS108MX-100EUS network switch Unmanaged L2 Gigabit Ethernet (10 100 1000) Desktop Wall-Mounting
  • NETGEAR GS108MX-100EUS network switch Unmanaged L2 Gigabit Ethernet (10 100 1000) Desktop Wall-Mounting
  • NETGEAR GS108MX-100EUS network switch Unmanaged L2 Gigabit Ethernet (10 100 1000) Desktop Wall-Mounting

NETGEAR GS108MX-100EUS network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop/Wall-Mounting

3C9A136ABF

NETGEAR GS108MX-100EUS, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, Desktop/Wall-Mounting

€153.70
Tax included
Quantity
Last items in stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Description
NETGEAR GS108MX-100EUS. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Full duplex. MAC address table: 16000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3az. DC input voltage: 12 V. Power connector: DC-in jack. Rack mounting, Form factor: Desktop/Wall-Mounting
Switch typeUnmanaged
Switch layerL2
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Gigabit Ethernet (copper) ports quantity8
10G Ethernet (copper) ports quantity1
Power connectorDC-in jack
Networking standardsIEEE 802.1p, IEEE 802.3az
10G supportYes
Full duplexYes
Flow control supportYes
VLAN supportNo
Number of VLANs0
MAC address table16000 entries
Switching capacity36 Gbit/s
Forwarding rate41.664 Mpps
Latency (10-100 Mbps)5 µs
Latency (1 Gbps)2 µs
Latency (10 Gbps)2 µs
Number of queues8
Jumbo frames supportYes
Jumbo frames9728
Packet buffer memory0.768 MB
MAC address filteringYes
Queue scheduling algorithmsPriority queuing (PQ), Weighted Round Robin (WRR)
Multicast MAC address table16000 entries
Rack mountingYes
Form factorDesktop/Wall-Mounting
Housing materialMetal
LED indicatorsActivity, Link, Power, Speed
Number of fans0 fan(s)
Electromagnetic compatibilityClass B
Mean time between failures (MTBF)3514690 h
Power sourceDC
Power supply includedYes
DC input voltage12 V
Input current1.5 A
Power consumption (max)5.8 W
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 118110.2" (0 - 3000 m)
Heat dissipation19.91 BTU/h
Width9.25" (235 mm)
Depth3.97" (100.8 mm)
Height1.06" (27 mm)
Weight20.3 oz (575 g)
User guideYes
Rack mount kitYes
Compliance certificatesBSMI, CE, Federal Communications Commission (FCC), ICES, KC, RCM, UKCA, VCCI
Product Details
Netgear
3C9A136ABF
1 Item

Specific References

EAN13
0606449168396
