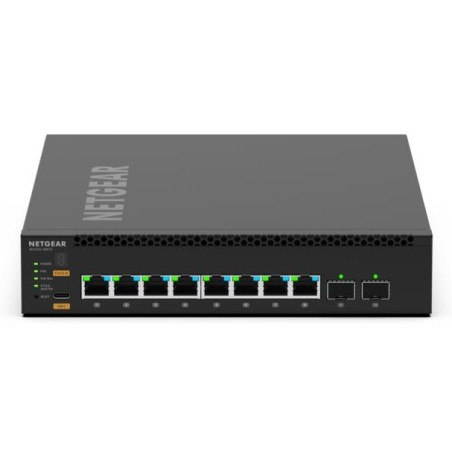

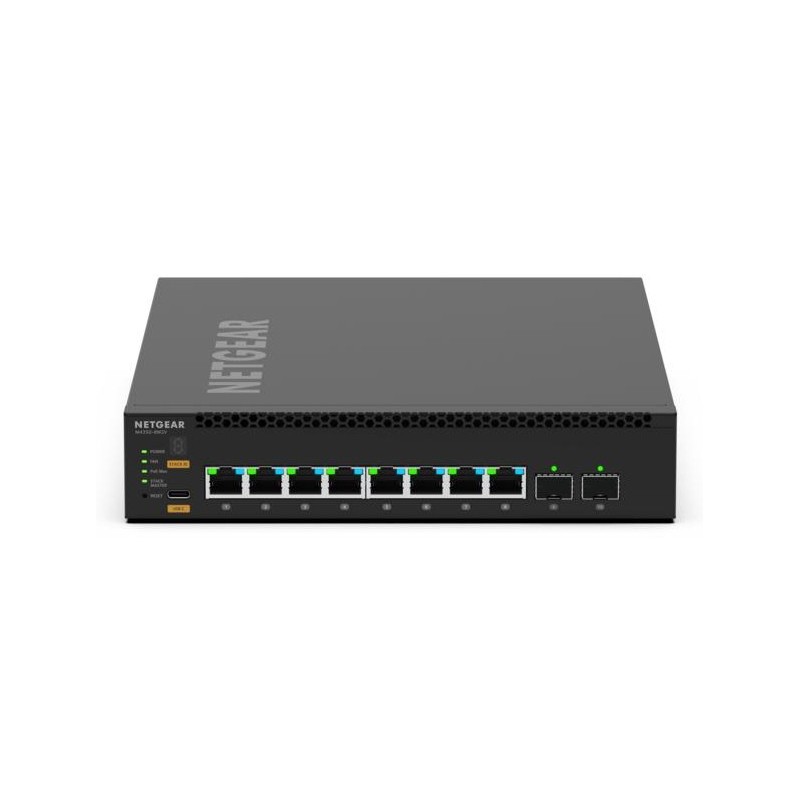

NETGEAR MSM4310 Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

NETGEAR MSM4310. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
2.5G Ethernet (copper) ports quantity	8
10G Ethernet (copper) ports quantity	8
SFP28 ports quantity	2
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
10G support	No
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
6to4 tunnel	Yes
IPv4 routes	512
IPv6 routes	256
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Voice VLAN
Number of VLANs	4093
MAC address table	16000 entries
Switching capacity	140 Gbit/s
Throughput	372 Mpps
Store-and-forward	Yes
Latency (10 Gbps)	2.27 µs
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	32 MB
DHCP features	DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) egress	1023
Access Control List (ACL) ingress	511
IGMP snooping	Yes
IGMP proxy	Yes
MAC address filtering	Yes
Static port security	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication
Root protection	Yes
Password protection	Yes
DoS attack prevention	Yes
Authentication type	RADIUS, TACACS+
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y
Management protocols	SNMP V1, V2, V3
GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product color	Black
LED indicators	Yes
Airflow direction	Front-to-back airflow
Built-in processor	Yes
Processor model	ARM Cortex-A57
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	2048 MB
Flash memory	512 MB
sFlow	Yes
Power source	AC
Power supply included	Yes
Power consumption (typical)	133.5 W
Power consumption (max)	351.5 W
Power over Ethernet (PoE)	Yes
Power over Ethernet 4PPoE (PoE++) ports quantity	48
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	3314 W
Power supply	550 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Width	8.66" (220 mm)
Depth	11.8" (300 mm)
Height	1.7" (43.2 mm)
Weight	6.39 lbs (2.9 kg)
Cables included	AC, USB Type-C
Quick start guide	Yes
Rack mount kit	Yes
Included power plug types	EU, UK, NA
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Sustainability compliance	Yes
