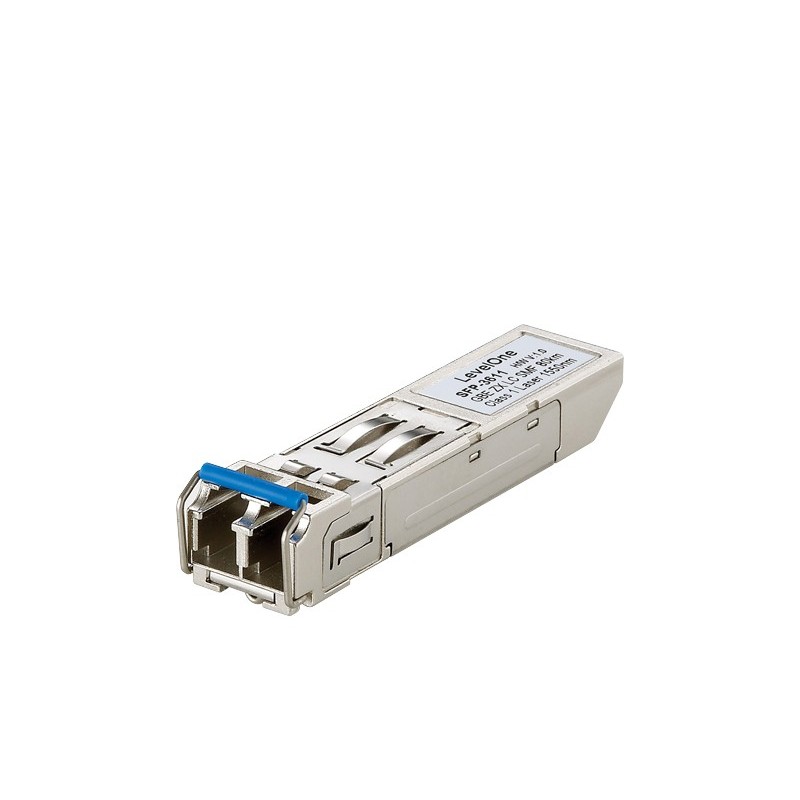

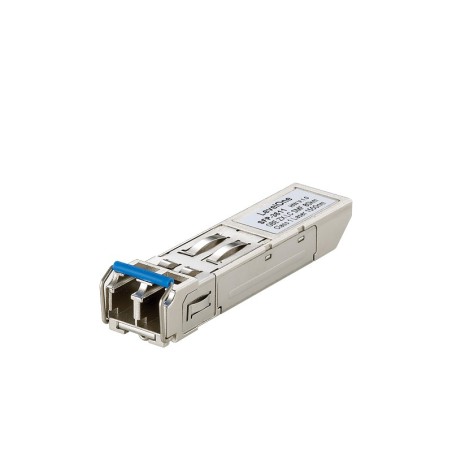

LevelOne SFP-3611 network transceiver module Fiber optic 1250 Mbit/s 1550 nm

50C61CA2

LevelOne SFP-3611, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 µm, 3149606.3" (80000 m)

€95.00
Tax included
Quantity
Articolo in magazzino

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Buy it now and receive it between 11/5/25 and 11/10/25 with Corriere Espresso

Description
LevelOne SFP-3611. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Maximum voltage: 6 V, Maximum current: 300 A. Compliance certificates: RoHS, Safety: EN 60825-1, Certification: CE, FCC. Width: 2.24" (57 mm), Depth: 0.472" (12 mm), Height: 0.539" (13.7 mm). Quantity per pack: 1 pc(s)
SFP transceiver typeFiber optic
Maximum data transfer rate1250 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance3149606.3" (80000 m)
Wavelength1550 nm
Tx power (min)0 dBmW
Tx power (max)5 dBmW
Link budget23 dB
Networking standardsIEEE 802.3z
Duplex systemFull
Fiber ports quantity1
Plug and PlayYes
Hot-swapYes
Input voltage3.3 V
Maximum voltage6 V
Maximum current300 A
Compliance certificatesRoHS
SafetyEN 60825-1
CertificationCE, FCC
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width2.24" (57 mm)
Depth0.472" (12 mm)
Height0.539" (13.7 mm)
Weight0.705 oz (20 g)
Quantity per pack1 pc(s)
Package width4.17" (106 mm)
Package depth0.787" (20 mm)
Package height2.56" (65 mm)
Package weight1.23 oz (35 g)
Harmonized System (HS) code85369010
Product Details
LevelOne
50C61CA2
4 Items

Specific References

EAN13
4015867155172
