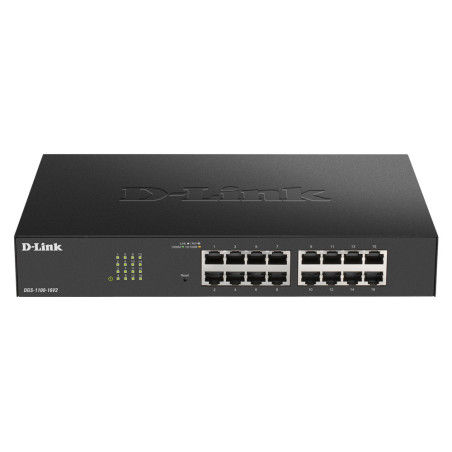

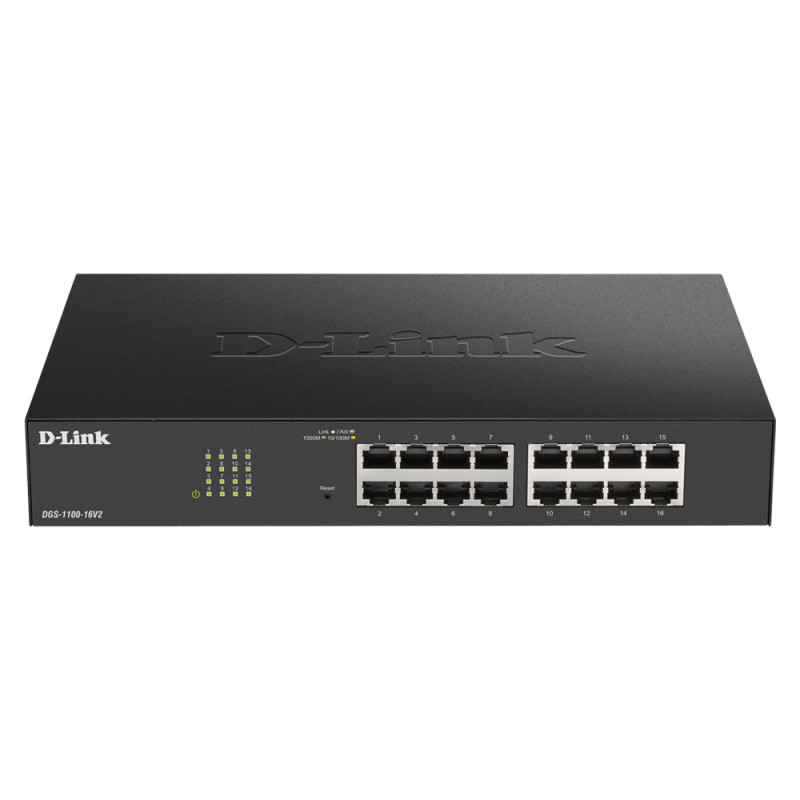

D-Link DGS-1100-16V2 Managed L2 Gigabit Ethernet (10 100 1000) Black
  • D-Link DGS-1100-16V2 Managed L2 Gigabit Ethernet (10 100 1000) Black
  • D-Link DGS-1100-16V2 Managed L2 Gigabit Ethernet (10 100 1000) Black
  • D-Link DGS-1100-16V2 Managed L2 Gigabit Ethernet (10 100 1000) Black

D-Link DGS-1100-16V2 Managed L2 Gigabit Ethernet (10/100/1000) Black

3813814E79

D-Link DGS-1100-16V2, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting

€144.34
Tax included
Quantity
Last items in stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Buy it now and receive it between 11/19/25 and 11/24/25 with Corriere Espresso

Description
D-Link DGS-1100-16V2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting
Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
System event logYes
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T, 10BASE-TX, 1000BASE-T
Port mirroringYes
Full duplexYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresPort-based VLAN, Voice VLAN
Number of VLANs128
MAC address table8000 entries
Switching capacity32 Gbit/s
Forwarding rate23.81 Mpps
Store-and-forwardYes
Number of queues4
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory4.1 MB
DHCP featuresDHCP client
IGMP snoopingYes
Security algorithmsSNMP, SSL/TLS
Queue scheduling algorithmsSPQ, Weighted Round Robin (WRR)
Multicast supportYes
Rack mountingYes
Product colorBlack
LED indicatorsYes
Built-in processorYes
Processor frequency125 MHz
Memory typeDRAM
Flash memory16 MB
Noise level0 dB
FanlessYes
Mean time between failures (MTBF)710519 h
Power sourceAC
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)10.1 W
Power over Ethernet (PoE)No
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 78740.2" (0 - 2000 m)
Heat dissipation34.46 BTU/h
Width11" (280 mm)
Depth7.09" (180 mm)
Height1.73" (44 mm)
Weight2.8 lbs (1.27 kg)
CertificationEMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC
Product Details
D-Link
3813814E79
1 Item

Specific References

EAN13
0790069467820
