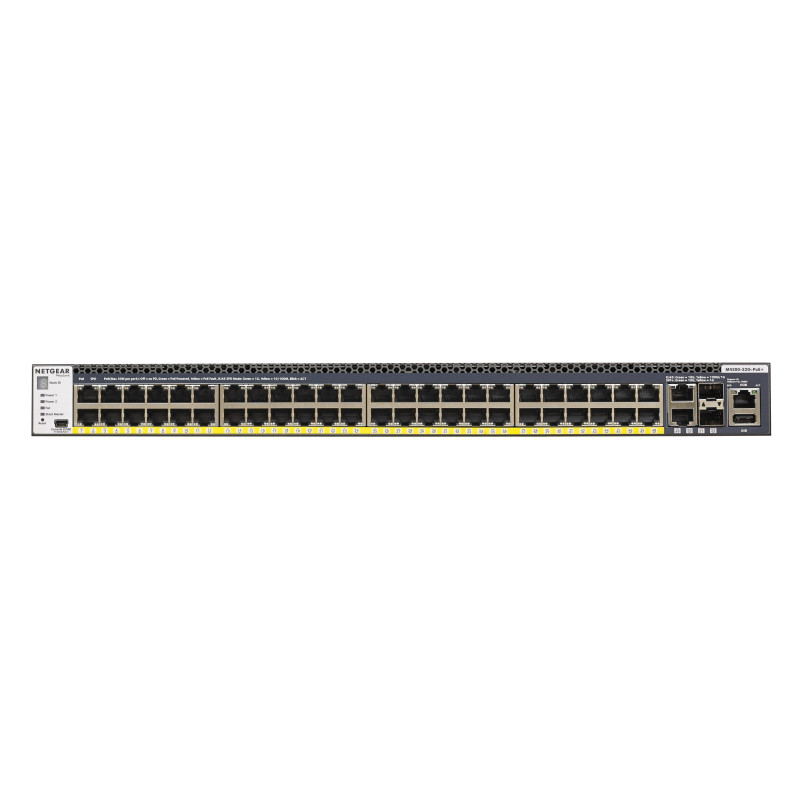

NETGEAR M4300-52G-PoE+ 550W PSU Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

NETGEAR M4300-52G-PoE+ 550W PSU. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.11ad, IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	2
Fiber optic connector	SFP+
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1
Networking standards	IEEE 802.11ad, IEEE 802.11az, IEEE 802.3ad, IEEE 802.3az
10G support	Yes
Cable types supported	Cat5, Cat5e, Cat6, Cat7, Fiber
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Auto-sensing	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN
Number of VLANs	4000
Fiber ethernet cabling technology	10GBASE-LR, 10GBASE-LRM, 10GBASE-SR
MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	357 Mpps
Store-and-forward	Yes
Number of static routes	64
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	16 MB
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SNMP, SSH
SSH/SSL support	Yes
BPDU filtering/protection	Yes
Multicast support	Yes
Number of multicast groups filtered	4000
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product color	Black
LED indicators	Activity, Power, Speed
Safety	CSA 22.2 #950, UL 1950)/cUL IEC 950/EN 60950
Electromagnetic compatibility	CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024
Built-in processor	Yes
Processor frequency	800 MHz
Internal memory	1024 MB
Flash memory	256 MB
Noise level	39.8 dB
Mean time between failures (MTBF)	673207 h
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Number of power supply units	1
AC input voltage	110 - 220 V
Power consumption (max)	865 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	480 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Heat dissipation	207913 BTU/h
Width	17.3" (440 mm)
Depth	15.3" (388 mm)
Height	1.73" (44 mm)
Weight	14.7 lbs (6.67 kg)
Cables included	AC, LAN (RJ-45), Mini-USB
User guide	Yes
Rack mount kit	Yes
Rubber feet	Yes
Resource CD	Yes
Harmonized System (HS) code	85176990
