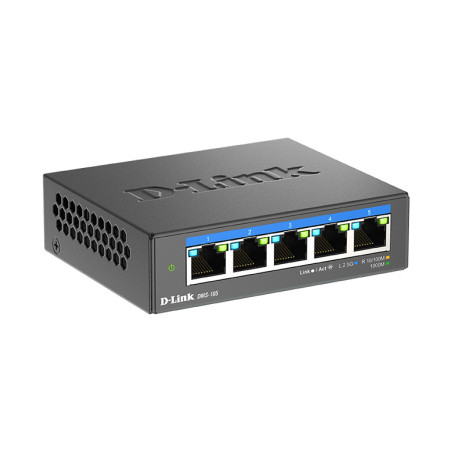

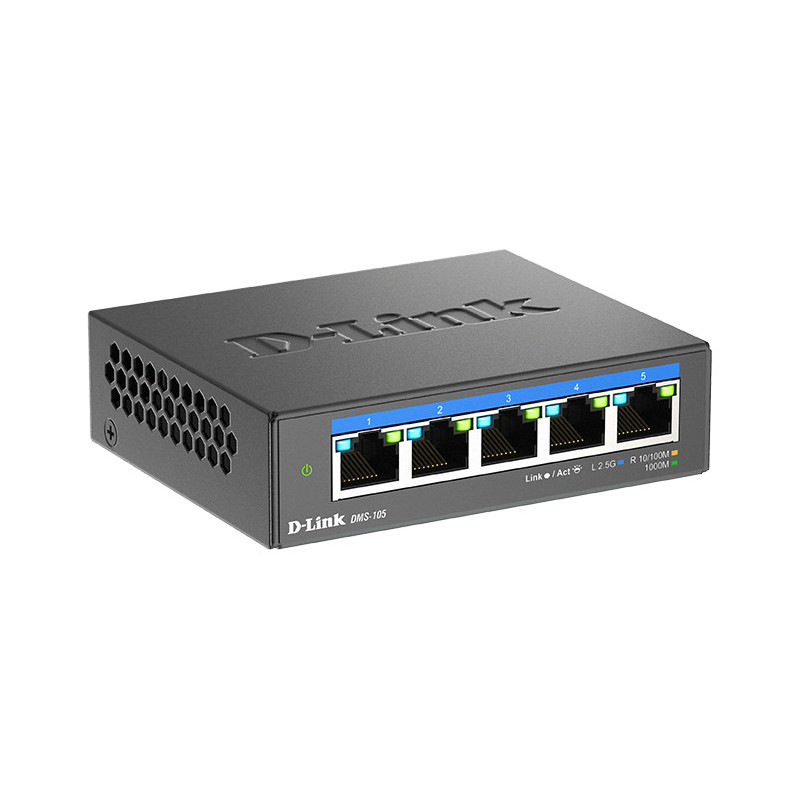

D-Link DMS-105 Unmanaged L2 2.5G Ethernet (100 1000 2500) Black
  • D-Link DMS-105 Unmanaged L2 2.5G Ethernet (100 1000 2500) Black
  • D-Link DMS-105 Unmanaged L2 2.5G Ethernet (100 1000 2500) Black
  • D-Link DMS-105 Unmanaged L2 2.5G Ethernet (100 1000 2500) Black

D-Link DMS-105 Unmanaged L2 2.5G Ethernet (100/1000/2500) Black

3325F206AE

D-Link DMS-105, Unmanaged, L2, 2.5G Ethernet (100/1000/2500)

€116.26
Tax included
Quantity
Out-of-Stock

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Notify me when available
Description
D-Link DMS-105. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 25 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V
Switch typeUnmanaged
Switch layerL2
Quality of Service (QoS) supportYes
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity5
Networking standardsIEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G supportNo
Flow control supportYes
Auto MDI/MDI-XYes
MAC address auto-learning supportedYes
MAC address table4000 entries
Switching capacity25 Gbit/s
Forwarding rate18.6 Mpps
Store-and-forwardYes
Packet buffer memory8.1 MB
IGMP snoopingYes
Multicast supportYes
StackableYes
Product colorBlack
LED indicatorsActivity, Link, Power
FanlessYes
Mean time between failures (MTBF)765190 h
Power sourceDC
Power supply includedYes
DC input voltage12 V
Input current1 A
Power consumption (typical)4.918 W
Power over Ethernet (PoE)No
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation16.78 BTU/h
Width3.96" (100.5 mm)
Depth3.23" (82 mm)
Height1.1" (28 mm)
Weight8.42 oz (238.6 g)
Compliance certificatesBSMI, CE, Low Voltage Directive (LVD), RoHS
Sustainability complianceYes
Product Details
D-Link
3325F206AE
Notify me when available

Specific References

EAN13
0790069469305
