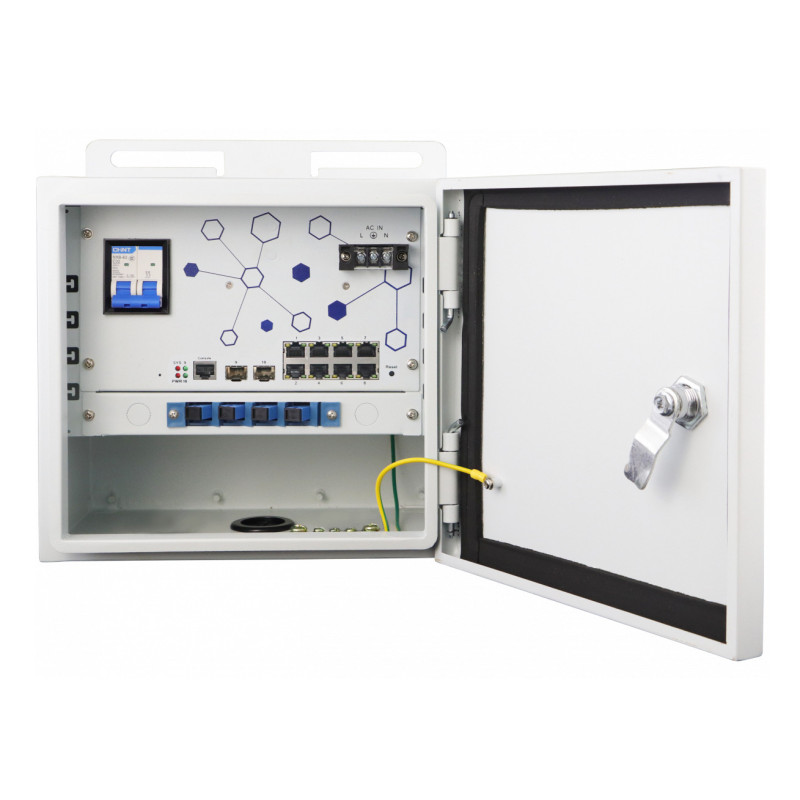

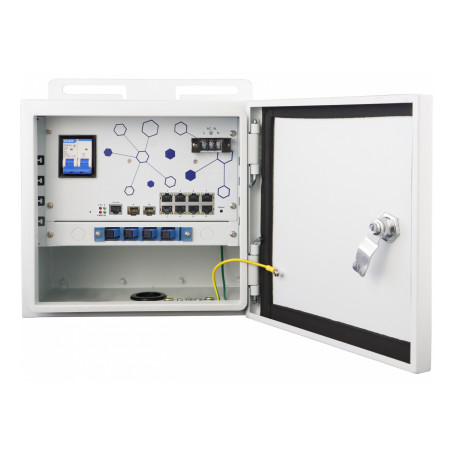

LevelOne OSW-1061, Managed, L2, 2.5G Ethernet (100/1000/2500), Full duplex, Power over Ethernet (PoE)
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity | 0 |
| 2.5G Ethernet (copper) ports quantity | 8 |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Port mirroring | Yes |
| Full duplex | Yes |
| Policy-based routing | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP snooping |
| MAC address filtering | Yes |
| BPDU filtering/protection | Yes |
| Password protection | Yes |
| Multicast support | Yes |
| IP Source Guard (IPSG) | Yes |
| Rack mounting | No |
| Stackable | No |
| Product color | Black |
| LED indicators | Link, Power |
| International Protection (IP) code | IP55 |
| Internal memory | 1 MB |
| Flash memory | 120 MB |
| Fanless | No |
| Mean time between failures (MTBF) | 4000000 h |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 200 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 185 W |
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Width | 11" (280 mm) |
| Depth | 7.87" (200 mm) |
| Height | 9.84" (250 mm) |
| Weight | 17.6 lbs (8 kg) |
| Quick start guide | Yes |
| Manual | Yes |
| Package type | Box |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
