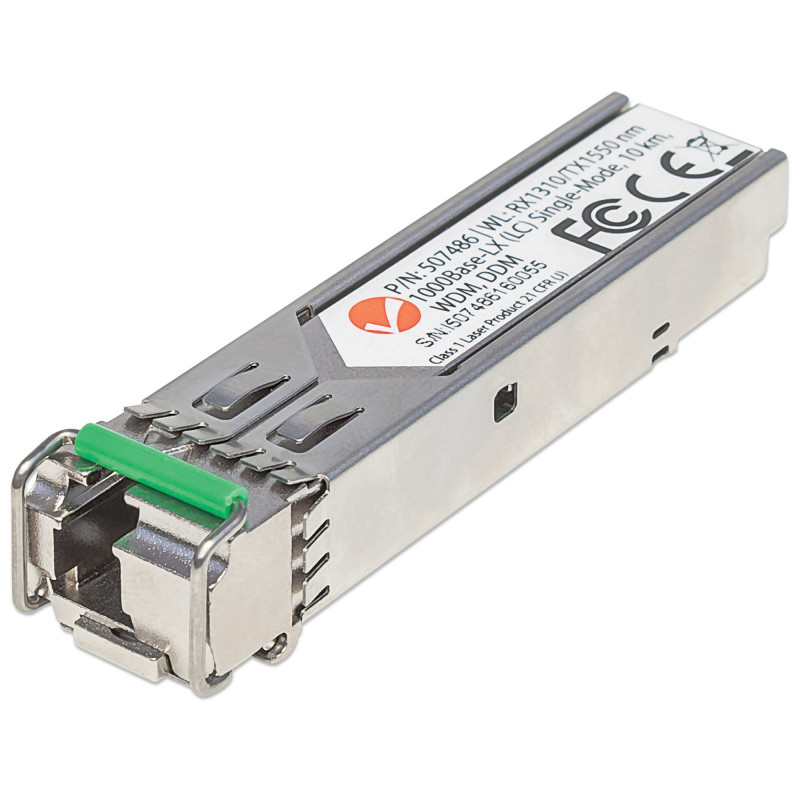

Intellinet 507486 network transceiver module Fiber optic 1000 Mbit/s SFP

D73C62C1

Intellinet 507486, Fiber optic, 1000 Mbit/s, SFP, LC, 9/125 µm, 393700.8" (10000 m)

€66.00
Tax included
Quantity
Articolo in magazzino

NB. Per richiesta fattura compilare i campi Partita IVA o CODICE FISCALE presenti in fase di conferma ordine.

Buy it now and receive it between 9/22/25 and 9/25/25 with Corriere Espresso

Description
Intellinet 507486. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Product color: Metallic. Power consumption (typical): 1 W. Compliance certificates: RoHS. Width: 0.551" (14 mm), Depth: 2.24" (57 mm), Height: 0.472" (12 mm)
SFP transceiver typeFiber optic
Maximum data transfer rate1000 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance393700.8" (10000 m)
Tx wavelength (max)1310 nm
Rx wavelength (max)1550 nm
Tx power (min)-8 dBmW
Tx power (max)-3 dBmW
Link budget16 dB
Ethernet LANYes
Networking standardsIEEE 802.3z
Cabling technology1000Base-LX
Duplex systemFull
Fiber ports quantity1
Product colorMetallic
Hot-Plug supportYes
Power consumption (typical)1 W
Compliance certificatesRoHS
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)10 - 85%
Width0.551" (14 mm)
Depth2.24" (57 mm)
Height0.472" (12 mm)
Weight1.31 oz (37 g)
Quantity per pack1 pc(s)
RX sensitivity-24 dB
Harmonized System (HS) code85369010
Product Details
Intellinet
D73C62C1
5 Items

Specific References

EAN13
0766623507486
