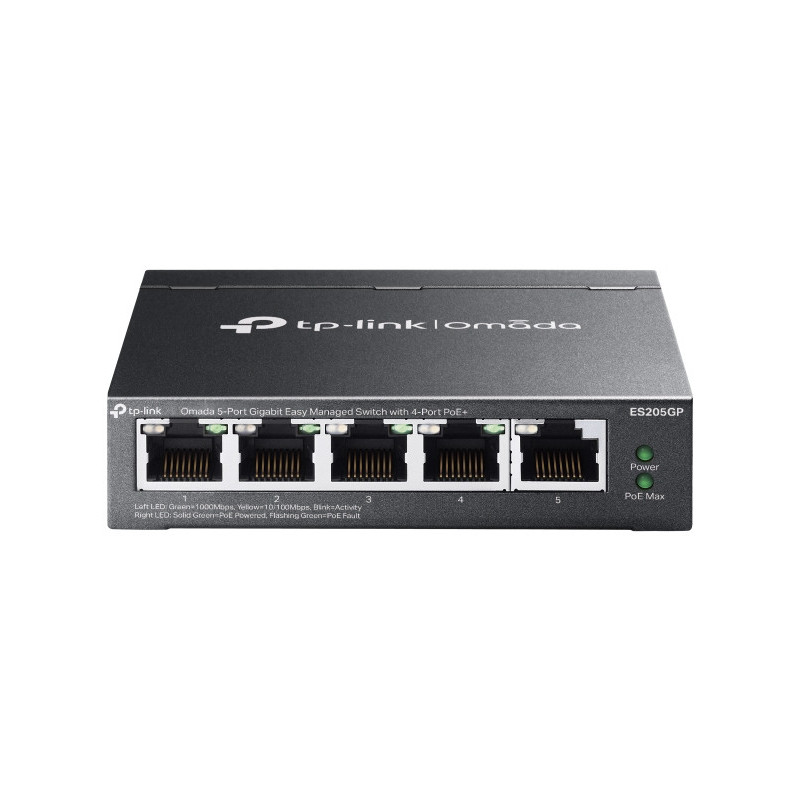

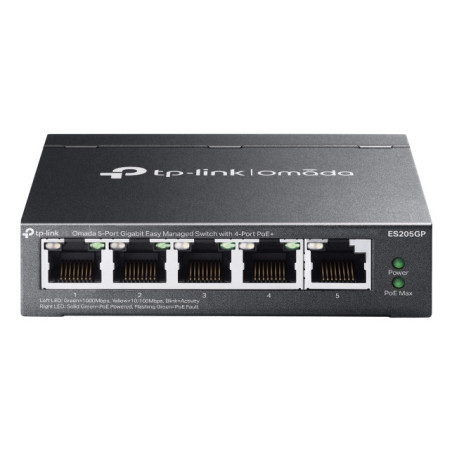

TP-Link Omada ES205G, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Transmission distance (max) | 0.25 km |
| MAC address table | 8000 entries |
| Switching capacity | 10 Gbit/s |
| Forwarding rate | 7.4 Mpps |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 15 |
| Packet buffer memory | 4 MB |
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Loop protection | Yes |
| Product color | Black |
| Reset button | Yes |
| LED indicators | Yes |
| Wall mountable | Yes |
| Fanless | Yes |
| Power source | AC/DC |
| Power supply included | Yes |
| DC input voltage | 53.5 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 3.94" (100 mm) |
| Depth | 3.86" (98 mm) |
| Height | 0.984" (25 mm) |
| User guide | Yes |
| Package type | Box |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
